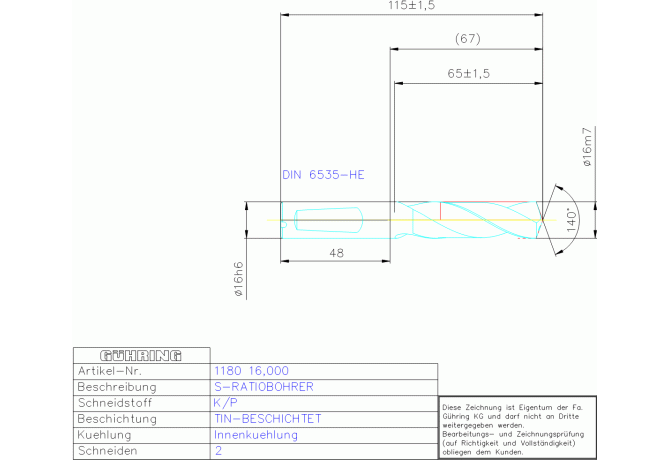

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1180 16.000

1180 16.000

Артикул: 9011800160000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

16 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01605315

FamilyProducts

VHM S-RATIOBOH, KI RT100F DIN 6537K-B RN

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

87.06 mm

GRD2ND Standard designation of the grade 2nd application

K/P

GRDMFG Grade manufacturers designation

K/P

GRDPRIO Standard designation of the grade main application

HC-K/P

GRDSYC Grind style code

GG-FK

HAND Cutting direction

R - Right

ID Technical product number

9011800160000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

65 mm

LF Functional length

112 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01605315

LPR Protruding length

67 mm

LS Shank length

48 mm

LU Usable length

45 mm

Name Identifying order number

1180 16.000

NOF Flute count

OAL Overall length

115 mm

PL Point length

3 mm

SIG Point angle 1st step

140 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6537K

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.239 kg
