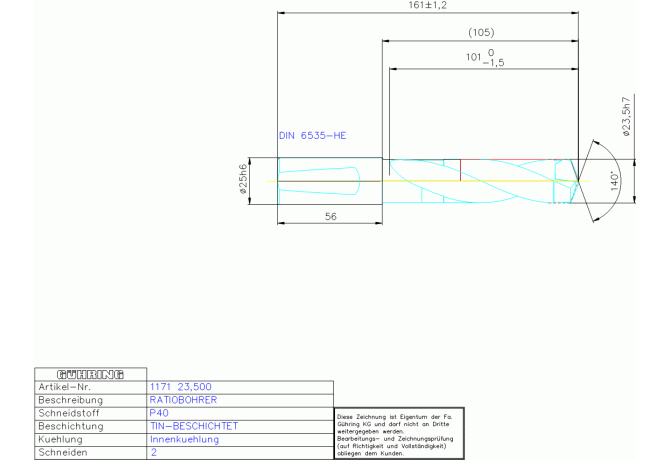

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1171 23.500

1171 23.500

Артикул: 9011710235000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

23.5 mm

DCONMSLD Shank diameter lower limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL02501315

FamilyProducts

S-RATIOBOHRER 23,5 DIN 6538RN K/P ZYLR

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

160 mm

GRDMFG Grade manufacturers designation

HM-BEST,

GRDPRIO Standard designation of the grade main application

GRDSYC Grind style code

GG-RK

HAND Cutting direction

R - Right

ID Technical product number

9011710235000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

101 mm

LF Functional length

146.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501315

LPR Protruding length

105 mm

LS Shank length

56 mm

LU Usable length

63 mm

Name Identifying order number

1171 23.500

NOF Flute count

OAL Overall length

161 mm

PL Point length

4.3 mm

SIG Point angle 1st step

140 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6538K

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.426 kg
