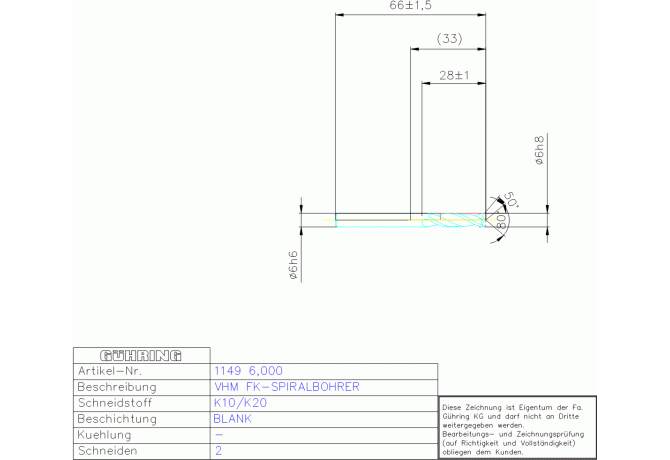

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1149 6.000

1149 6.000

Артикул: 9011490060000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

6 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00600105

FamilyProducts

VHM FK-SPIRALBOHRER 6,000 WN R K10/20ZYL

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

32.6 mm

GRD2ND Standard designation of the grade 2nd application

K10/K20

GRDMFG Grade manufacturers designation

K10/K20

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9011490060000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

28 mm

LF Functional length

65.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

33 mm

LS Shank length

38 mm

LU Usable length

20 mm

Name Identifying order number

1149 6.000

NOF Flute count

OAL Overall length

66 mm

PL Point length

0.5 mm

SIG Point angle 1st step

80 Degree

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.026 kg
