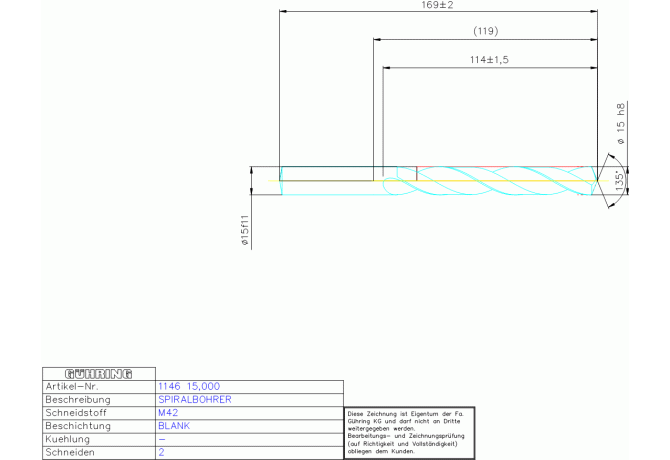

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1146 15.000

1146 15.000

Артикул: 9011460150000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

15 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01500105

FamilyProducts

M 42 SPIRALBOH, KURZ 15,000 DIN 338RN ZY

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

80 mm

GRD2ND Standard designation of the grade 2nd application

M42

GRDMFG Grade manufacturers designation

M42

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

GG-NK

HAND Cutting direction

R - Right

ID Technical product number

9011460150000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

114 mm

LF Functional length

165.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0150

LOC-03 DCONMS Diameter

15 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01500105

LPR Protruding length

119 mm

LS Shank length

55 mm

LU Usable length

96 mm

Name Identifying order number

1146 15.000

NOF Flute count

OAL Overall length

169 mm

PL Point length

3.2 mm

SIG Point angle 1st step

135 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.178 kg
