Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1131 6.000

1131 6.000

Артикул: 9011310060000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

6 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00605315

FamilyProducts

HSCO KUEHLKANALBOHR, 6,000 WN RN GT80 ZY

FHA Flute helix angle

36 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

22.5 mm

GRD2ND Standard designation of the grade 2nd application

HSCO-KI

GRDMFG Grade manufacturers designation

HSCO-KI

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

GG-GB

HAND Cutting direction

R - Right

ID Technical product number

9011310060000

Interface codes

J6 / J61

ISO

ZYL53F6000h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

44 mm

LF Functional length

80.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL53F6000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00605315

LPR Protruding length

46 mm

LS Shank length

36 mm

LU Usable length

38 mm

Name Identifying order number

1131 6.000

NOF Flute count

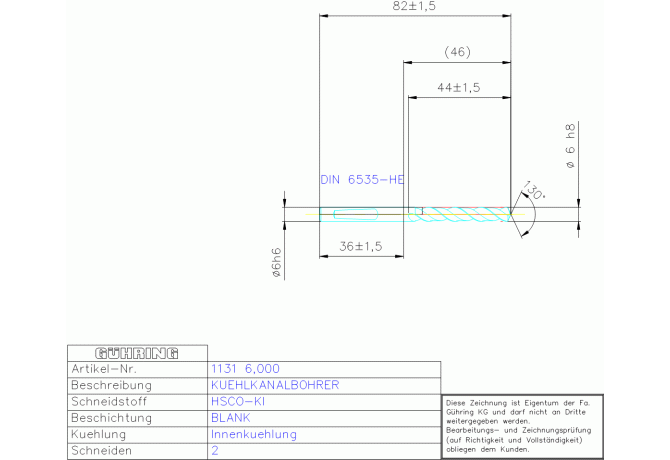

OAL Overall length

82 mm

PL Point length

1.4 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.016 kg
