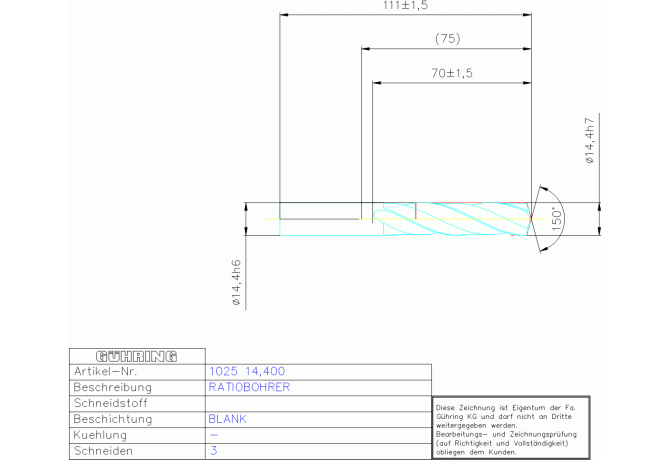

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1025 14.400

1025 14.400

Артикул: 9010250144000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

14.4 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01440105

FamilyProducts

VHM DREISCHNEIDER 14,400 DIN 6539RN K10

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

90 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-KG

HAND Cutting direction

R - Right

ID Technical product number

9010250144000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

70 mm

LF Functional length

109 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0144

LOC-03 DCONMS Diameter

14.4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01440105

LPR Protruding length

75 mm

LS Shank length

41 mm

LU Usable length

51 mm

Name Identifying order number

1025 14.400

NOF Flute count

OAL Overall length

111 mm

PL Point length

2 mm

SIG Point angle 1st step

150 Degree

STDNO Standard

DIN6539

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.169 kg
