Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1018 6.100

1018 6.100

Артикул: 9010180061000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

ANLASSEN VIOLETT

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

6.1 mm

DCONMSLD Shank diameter lower limit

-0.103 mm

DCONMSUD Shank diameter upper limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00610105

FamilyProducts

M42 SPIRALBOHRER KURZ DIN 338RN ZYL

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

36.46 mm

GRD2ND Standard designation of the grade 2nd application

M42

GRDMFG Grade manufacturers designation

M42

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

GG-NK

HAND Cutting direction

R - Right

ID Technical product number

9010180061000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

63 mm

LF Functional length

99.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0061

LOC-03 DCONMS Diameter

6.1 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00610105

LPR Protruding length

68 mm

LS Shank length

38 mm

LU Usable length

56 mm

Name Identifying order number

1018 6.100

NOF Flute count

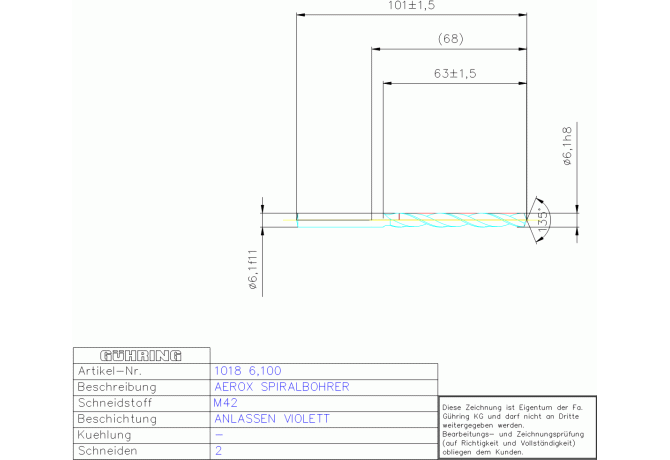

OAL Overall length

101 mm

PL Point length

1.3 mm

SIG Point angle 1st step

135 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.017 kg
