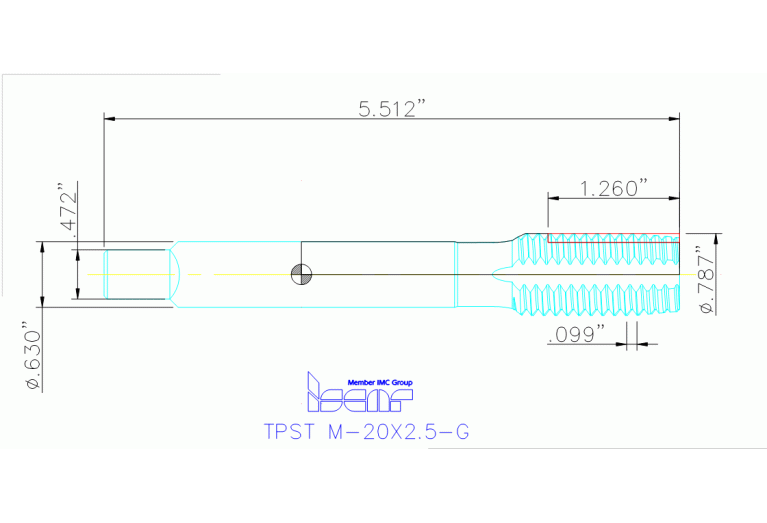

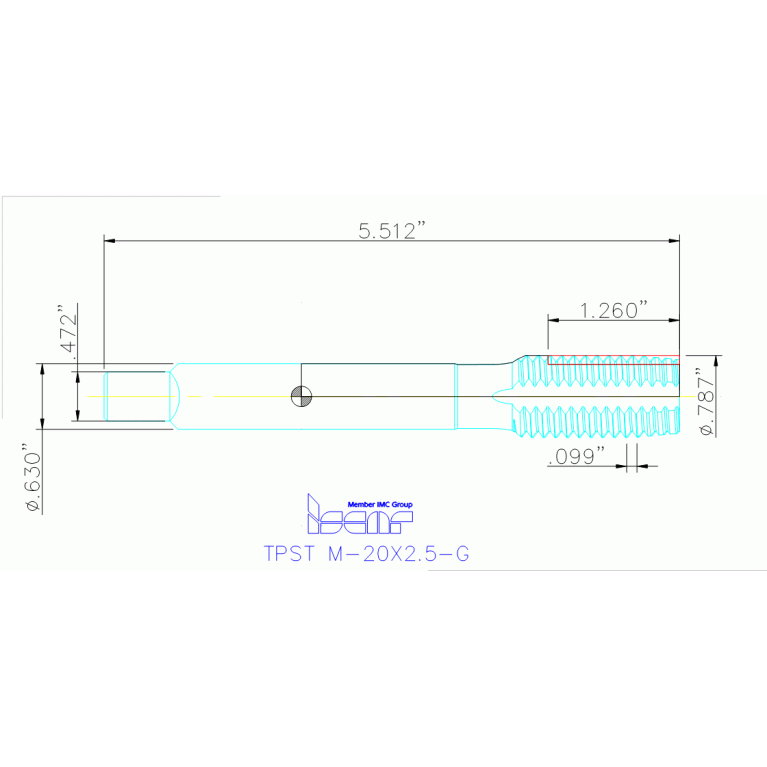

TPST M-20X2.5-G HENI

Артикул: 4445202

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01602105

DRVS Drive size

12 mm

FamilyProducts

DIN 13 HSS Straight Flute Machine Taps for ISO Metric Coarse Threads for Grey Cast Iron

FHA Flute helix angle

40 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HENI

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

4445202

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602105

Name Identifying order number

TPST M-20X2.5-G HENI

NOF Flute count

OAL Overall length

140 mm

PLCD Gate diameter

17.5 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN376

TCTR Thread tolerance class

6HX

TD Thread diameter

20 mm

THFT Thread form type

THL Thread cutting part length

32 mm

THOD Thread designation

M20x2.5-6HX

TP Thread pitch

2.5 mm

TTPID Tap type identifier

1 - Machine tap

Working process

BG - Tapping

WT Weight of item

0.2 kg
