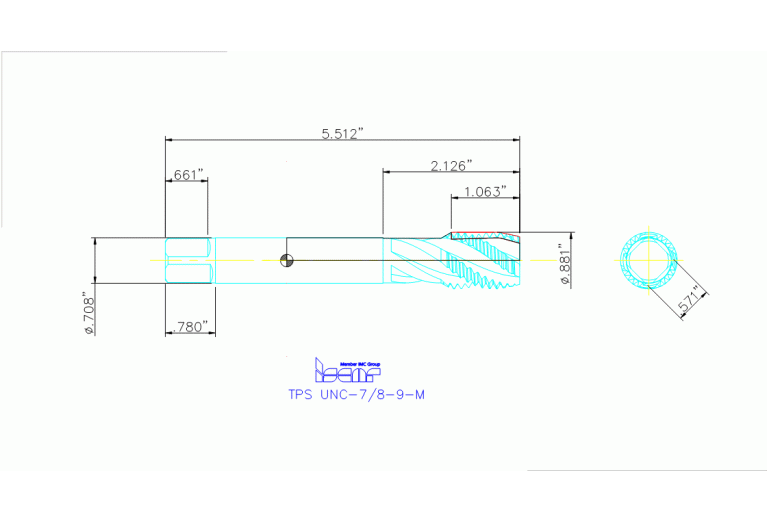

TPS UNC-7/8-9-M HEST

TPS UNC-7/8-9-M HEST TPS UNC-7/8-9-M HEST TPS UNC-7/8-9-M HEST

TPS UNC-7/8-9-M HEST

Iscar
Артикул: 4446130
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
Steam tempered
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL01802105
DRVS Drive size
14.5 mm
FamilyProducts
HSS Spiral Flute Machine Taps for Unified Coarse Threads for a Wide Range of Materials
FHA Flute helix angle
40 Degree
GRDMFG Grade manufacturers designation
HEST
ID Technical product number
4446130
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802105
Name Identifying order number
TPS UNC-7/8-9-M HEST
NOF Flute count
4
OAL Overall length
140 mm
TD Thread diameter
22.23 mm
TDFR Thread diameter nominal fraction
7/8 in
THFT Thread form type
UN
THL Thread cutting part length
27 mm
TPI Threads per inch
9 1/in
Working process
No working processes available
