Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank TPS M-18X2.5-W HS

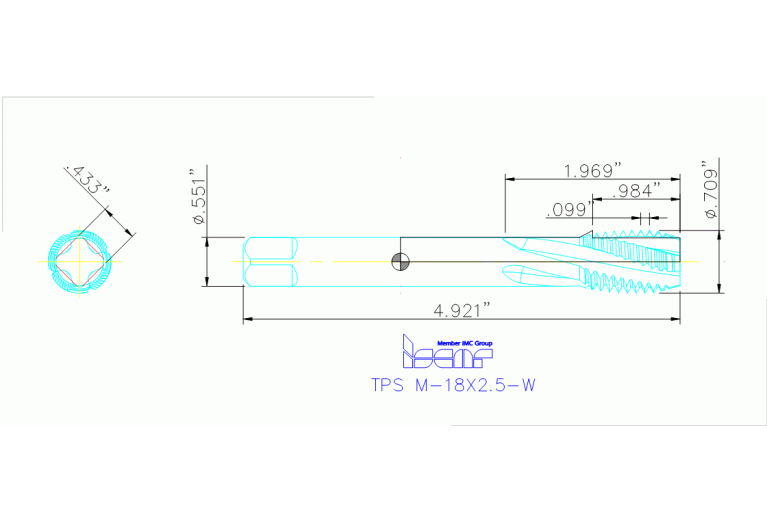

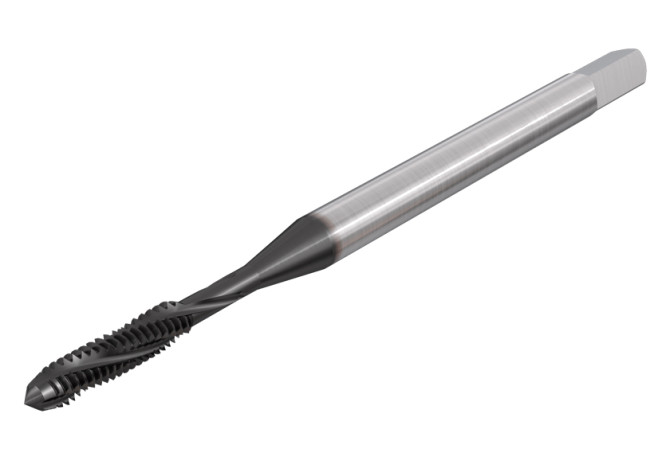

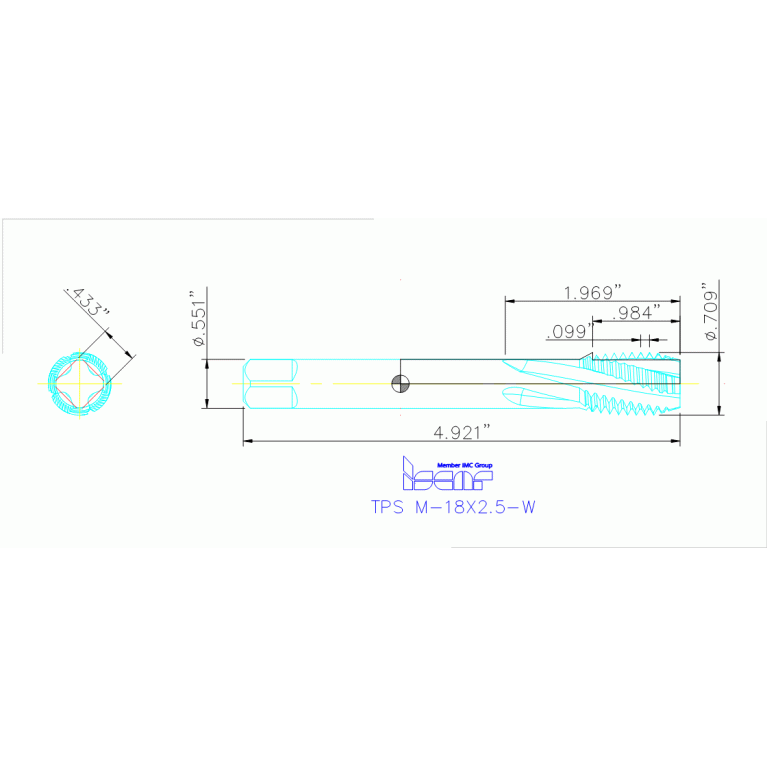

TPS M-18X2.5-W HS

Артикул: 4445096

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01402105

DRVS Drive size

11 mm

FamilyProducts

DIN 13 HSS (M2) Right-Hand 40° Spiral Flute Machine Taps for ISO Metric Coarse Threads on Steel with Good Machinability

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HAND Cutting direction

R - Right

ID Technical product number

4445096

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01402105

Name Identifying order number

TPS M-18X2.5-W HS

NOF Flute count

OAL Overall length

125 mm

PLCD Gate diameter

15.5 mm

STDNO Standard

DIN376

TD Thread diameter

18 mm

THFT Thread form type

THL Thread cutting part length

25 mm

TP Thread pitch

2.5 mm

Working process

BG - Tapping
