Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank TPH M-20X2.5-W HS

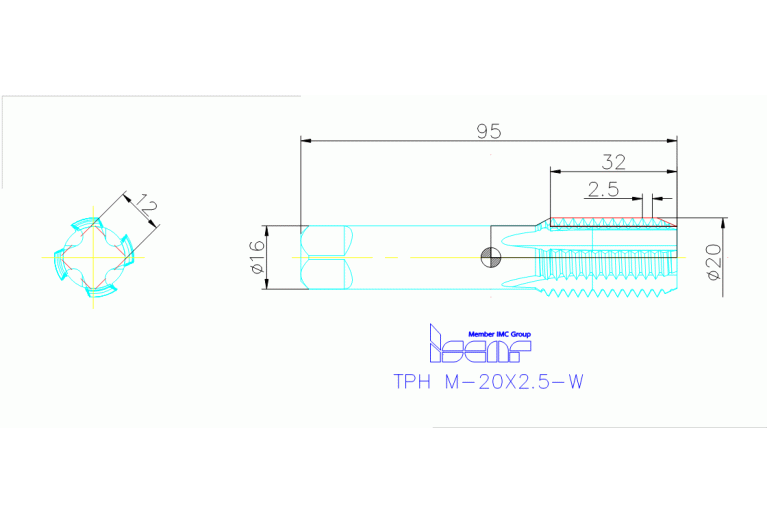

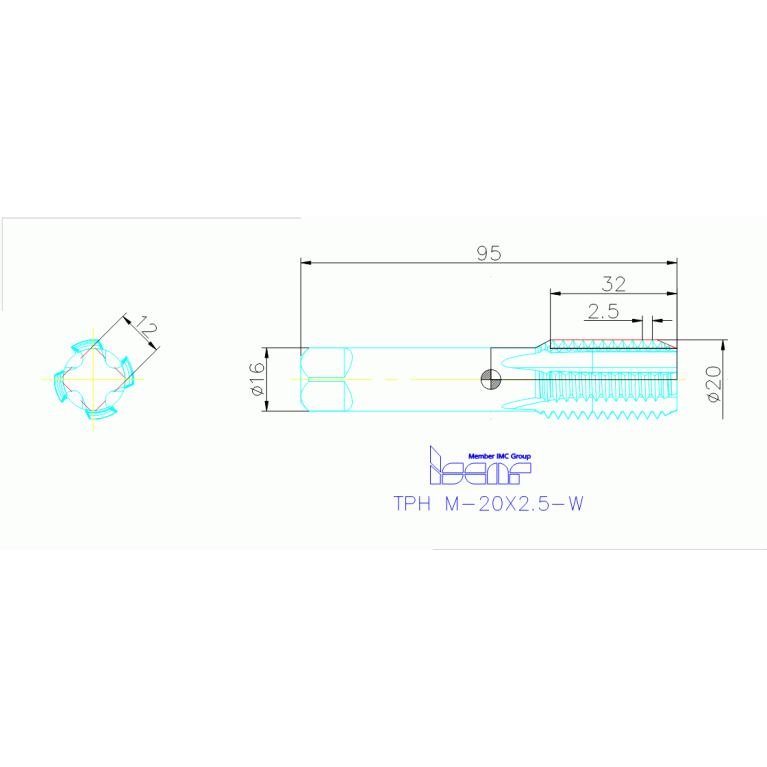

TPH M-20X2.5-W HS

TPH M-20X2.5-W HS TPH M-20X2.5-W HS TPH M-20X2.5-W HS

TPH M-20X2.5-W HS

Iscar
Артикул: 4445022
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL01602105
DRVS Drive size
12 mm
FamilyProducts

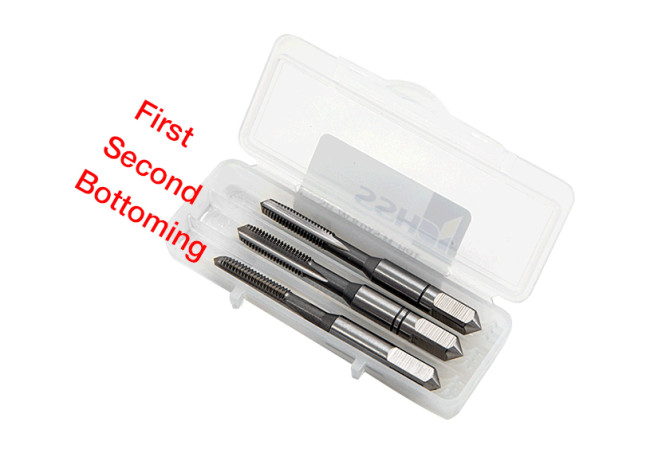

DIN 13 HSS Hand Tap Set for ISO Metric Coarse Threads
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HS
HAND Cutting direction
R - Right
ID Technical product number
4445022
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602105
Name Identifying order number
TPH M-20X2.5-W HS
NOF Flute count
4
OAL Overall length
95 mm
PLCD Gate diameter
17.5 mm
STDNO Standard
DIN352
TD Thread diameter
20 mm
THFT Thread form type
M
THL Thread cutting part length
32 mm
TP Thread pitch
2.5 mm
Working process
BG - Tapping
WT Weight of item
0.42 kg
