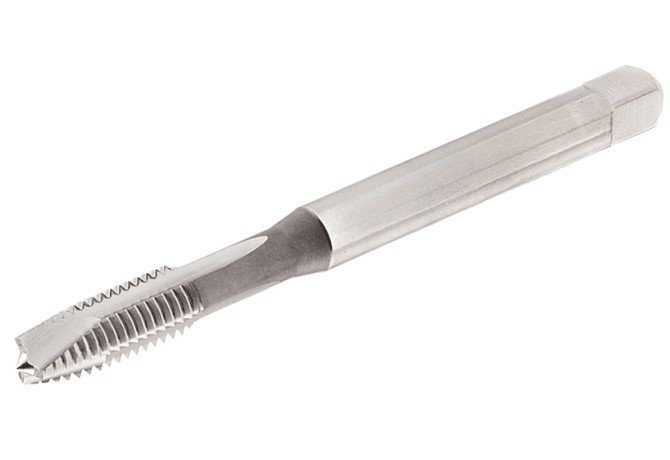

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank TPG M-27X3.0-M HEST

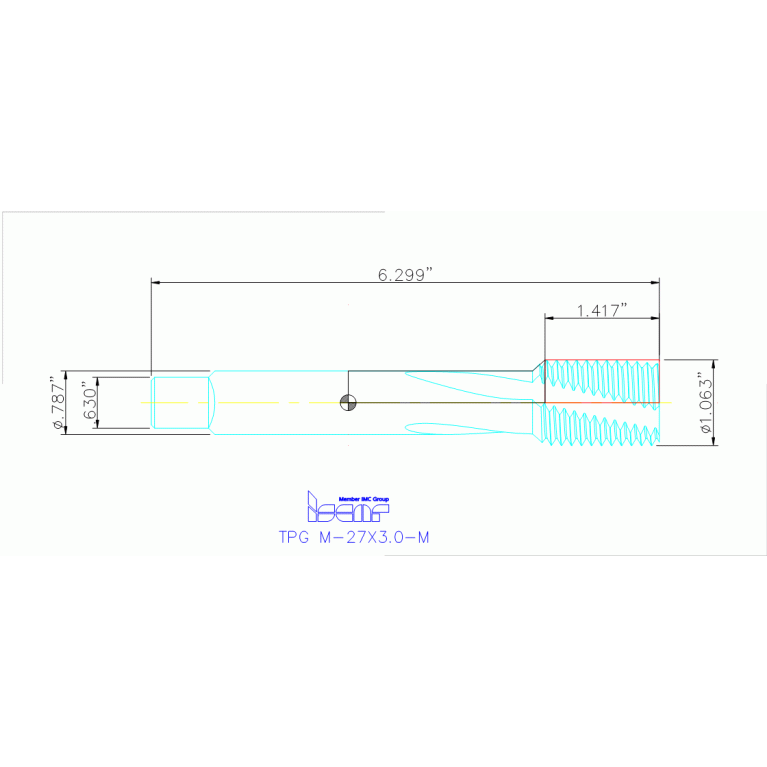

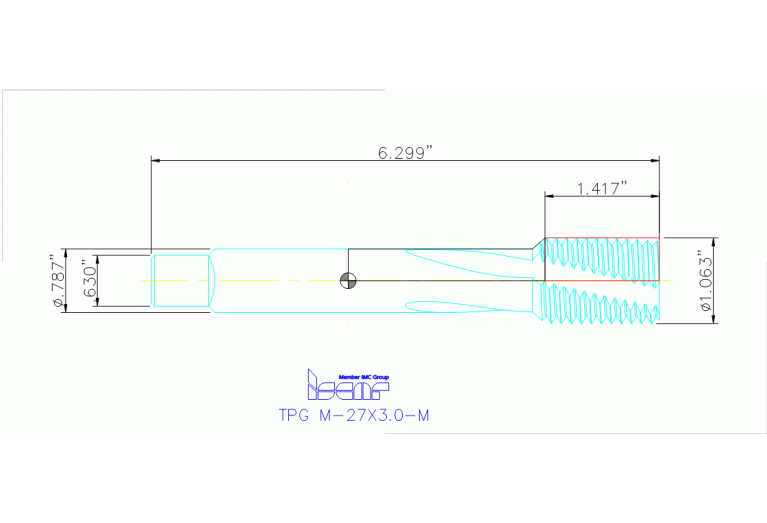

TPG M-27X3.0-M HEST

Артикул: 4446014

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Steam tempered

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02002105

DRVS Drive size

16 mm

FamilyProducts

DIN 13 HSS Gun Point Machine Taps for ISO Metric Coarse Threads for a Wide Range of Materials

FHA Flute helix angle

0 Degree

GRDMFG Grade manufacturers designation

HEST

HAND Cutting direction

R - Right

ID Technical product number

4446014

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$12

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002105

Name Identifying order number

TPG M-27X3.0-M HEST

NOF Flute count

OAL Overall length

160 mm

TCDCONMS ISO-tolerance class shank diameter

h$12

TCL Tap chamfer length

15 mm

TD Thread diameter

27 mm

THFT Thread form type

THL Thread cutting part length

36 mm

TP Thread pitch

3 mm

Working process

No working processes available
