Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank TC130-UNC1-L1-WY80AA

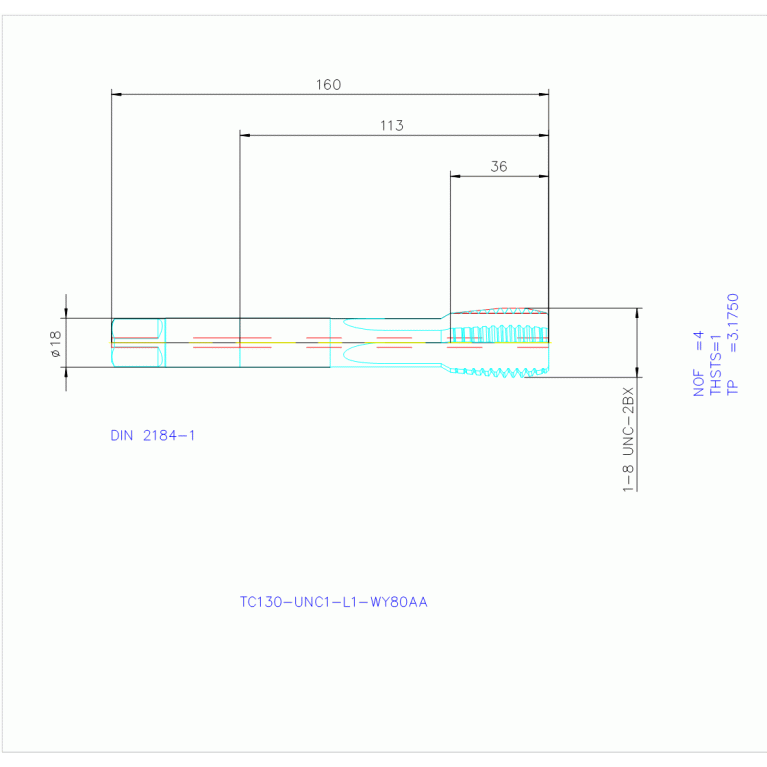

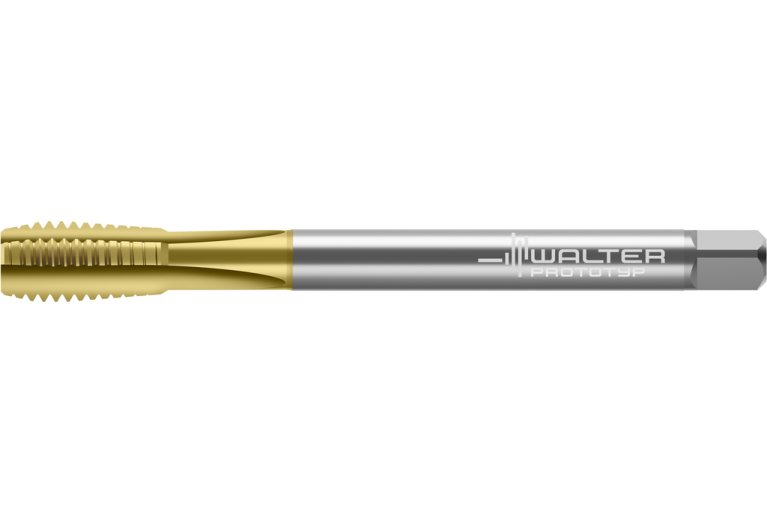

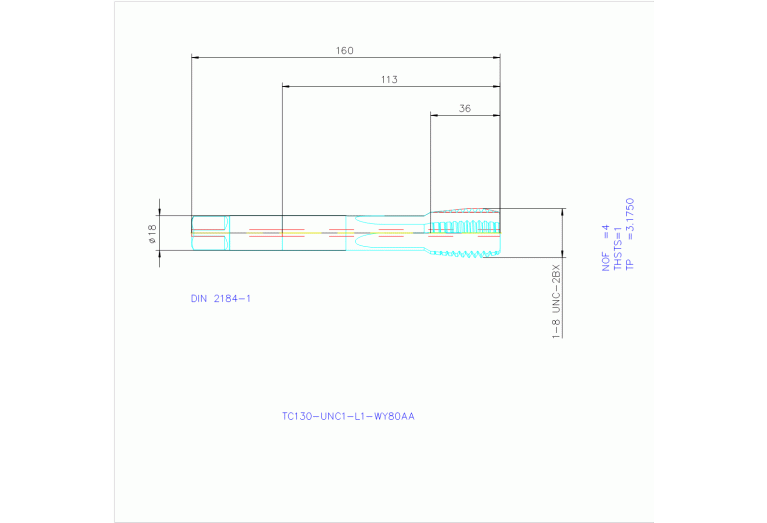

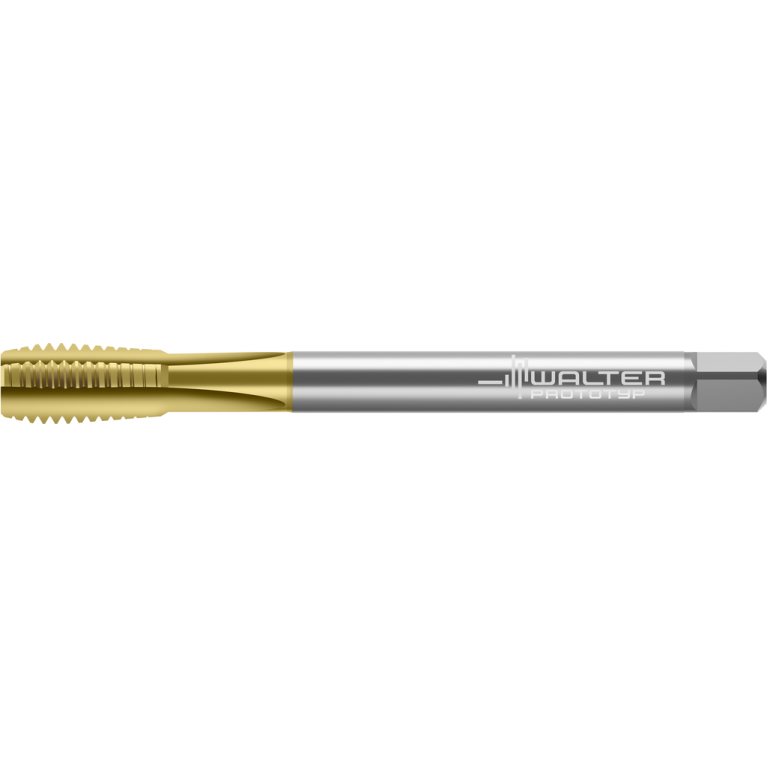

TC130-UNC1-L1-WY80AA

TC130-UNC1-L1-WY80AA TC130-UNC1-L1-WY80AA TC130-UNC1-L1-WY80AA TC130-UNC1-L1-WY80AA

TC130-UNC1-L1-WY80AA

Walter
Артикул: 8237497
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TIN
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01802115
FamilyProducts
HSS-E machine taps TC130
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
WY80AA
HAND Cutting direction
R - Right
ID Technical product number
8237497
Interface codes
J6 / J61
ISO
ZYL21G1800h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1800h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802115
LS Shank length
36 mm
Materials
P,K,N,O
Name Identifying order number
TC130-UNC1-L1-WY80AA
NOF Flute count
4
OAL Overall length
160 mm
PLCD Gate diameter
22.07 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
8.89 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
1" in
TDIN Thread diameter nominal inch
1 in
THFT Thread form type
UNC
THL Thread cutting part length
36 mm
THOD Thread designation
UNC1"-8-2B
TPI Threads per inch
8 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.305 kg
