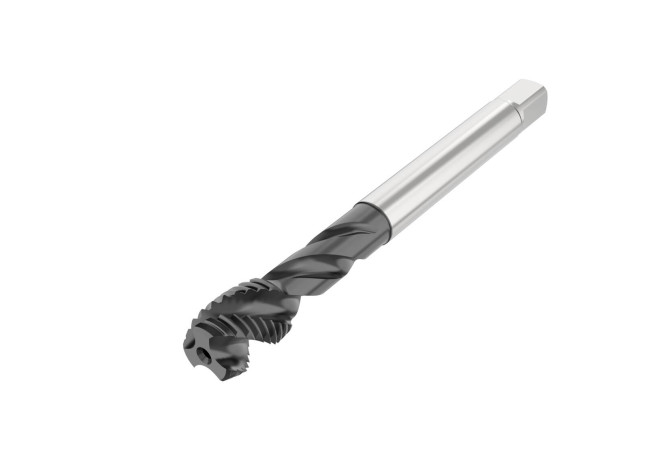

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank T34A-R45H02C05-8X1-65R

T34A-R45H02C05-8X1-65R

T34A-R45H02C05-8X1-65R T34A-R45H02C05-8X1-65R T34A-R45H02C05-8X1-65R T34A-R45H02C05-8X1-65R

T34A-R45H02C05-8X1-65R

Seco
Артикул: 10139027
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiAIN+WC/C
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00602115
FamilyProducts
T34A-R45H02C05-8X1-65R
FHA Flute helix angle
45 Degree
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
10139027
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602115
Name Identifying order number
T34A-R45H02C05-8X1-65R
NOF Flute count
3
OAL Overall length
87.38 mm
PLCD Gate diameter
7 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN374
TCTR Thread tolerance class
6HX
TD Thread diameter
8 mm
THFT Thread form type
MF
THL Thread cutting part length
10 mm
THOD Thread designation
MF8x1-6HX
TP Thread pitch
1 mm
Working process
BG - Tapping
WT Weight of item
0.016 kg
