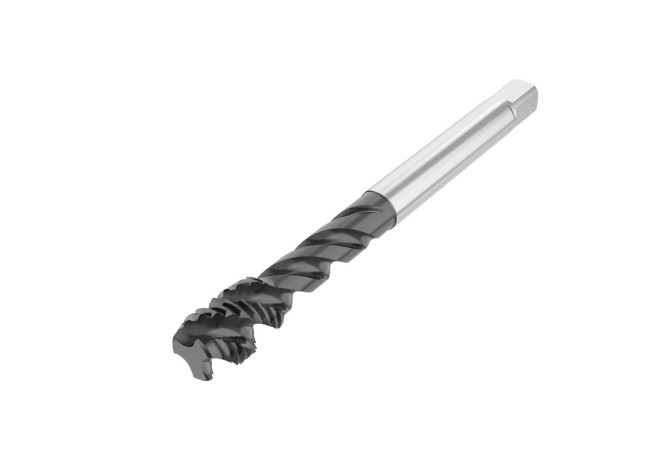

T34-R45H04E06-10X1.5-64R

T34-R45H04E06-10X1.5-64R

Seco
Артикул: 10139111
В наличии
В корзину
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAIN+WC/C
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00902105
FamilyProducts
T34-R45H04E06-10X1.5-64R
FHA Flute helix angle
45 Degree
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
10139111
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
Name Identifying order number
T34-R45H04E06-10X1.5-64R
NOF Flute count
3

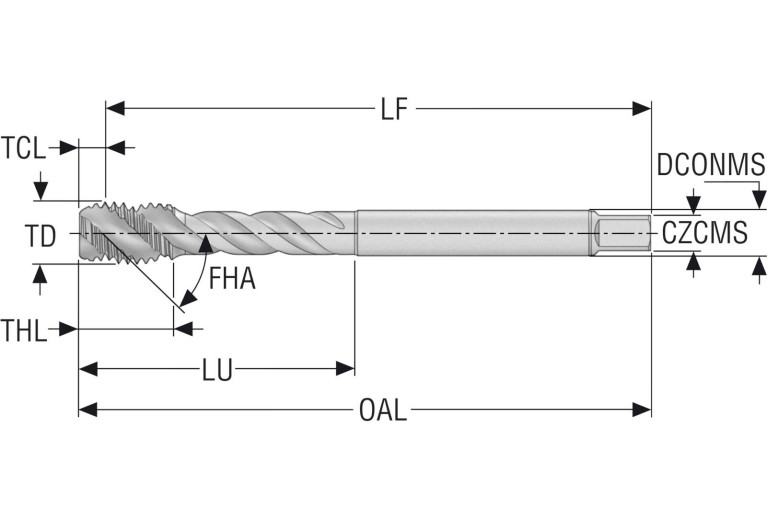

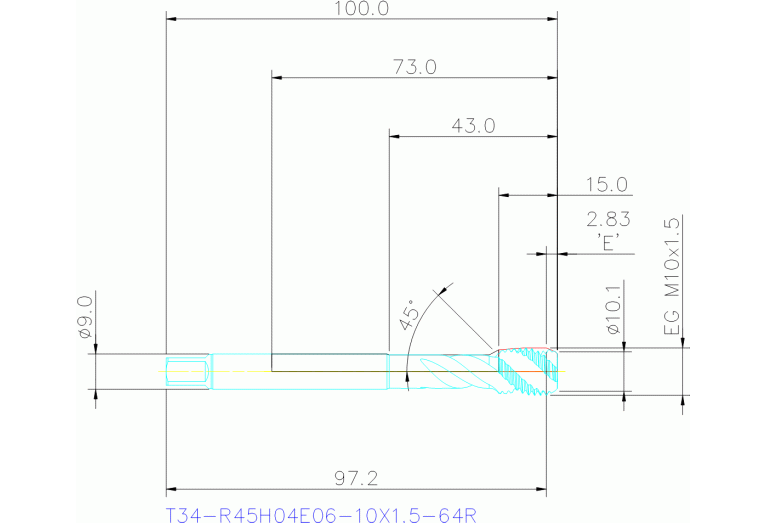

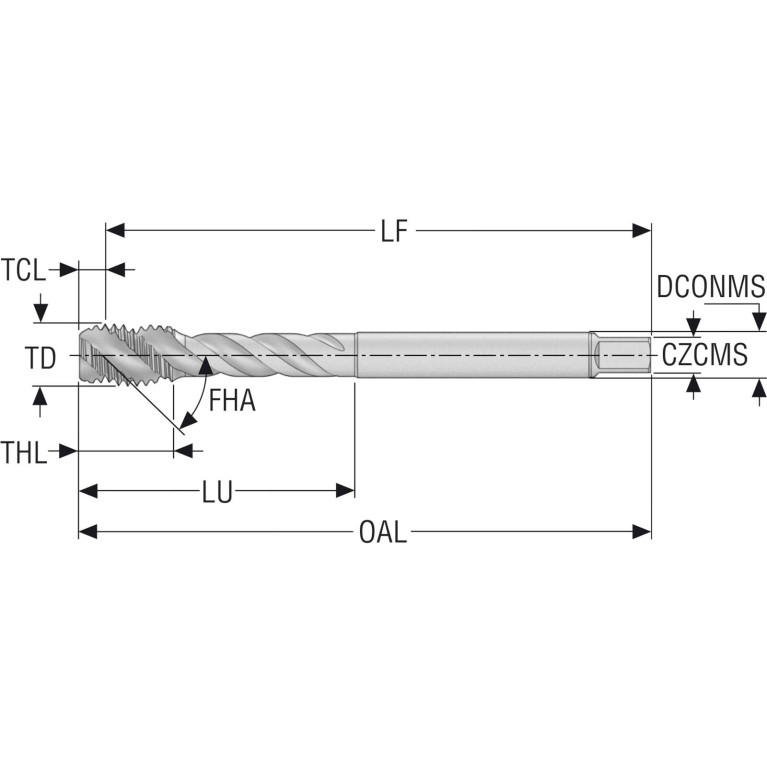

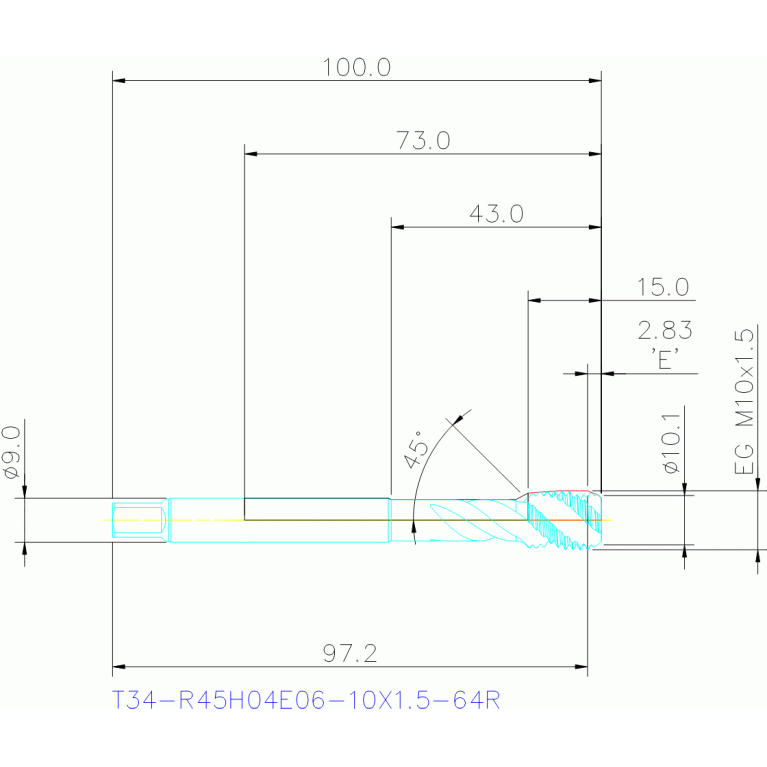

OAL Overall length
97.17 mm
PLCD Gate diameter
10.5 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
DIN376
TCTR Thread tolerance class
6H mod.
TD Thread diameter
11.948 mm
THFT Thread form type
M
THL Thread cutting part length
15 mm
THOD Thread designation
M11.948x1.5-6H mod.
TP Thread pitch
1.5 mm
Working process
BG - Tapping
WT Weight of item
0.043 kg
