Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank T34-PH16B06-7/16-14-21R

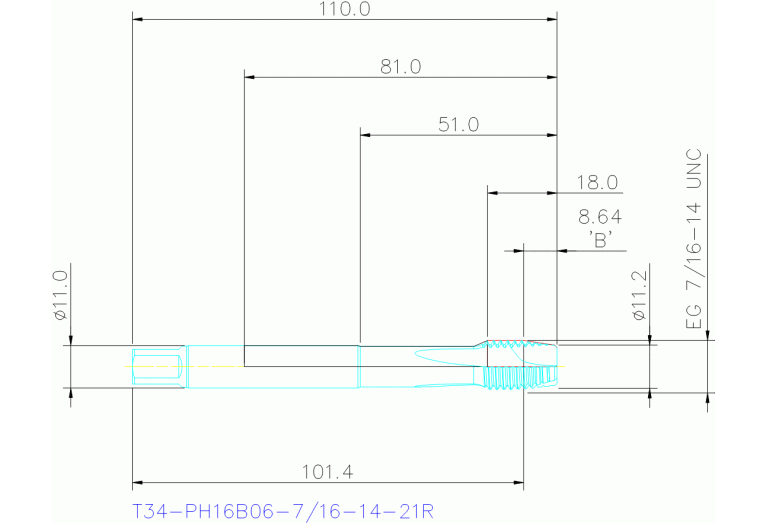

T34-PH16B06-7/16-14-21R

T34-PH16B06-7/16-14-21R T34-PH16B06-7/16-14-21R T34-PH16B06-7/16-14-21R T34-PH16B06-7/16-14-21R

T34-PH16B06-7/16-14-21R

SECO Tools
Артикул: 10139416
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAIN+WC/C
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01102105
FamilyProducts
T34-PH16B06-7/16-14-21R
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
10139416
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0110
LOC-03 DCONMS Diameter
11 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102105
Name Identifying order number
T34-PH16B06-7/16-14-21R
NOF Flute count
3
OAL Overall length
101.4 mm
PLCD Gate diameter
11.6 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN376
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
7/16 in
THFT Thread form type
EGUNC
THL Thread cutting part length
18 mm
TPI Threads per inch
14 1/in
Working process
BG - Tapping
WT Weight of item
0.076 kg
