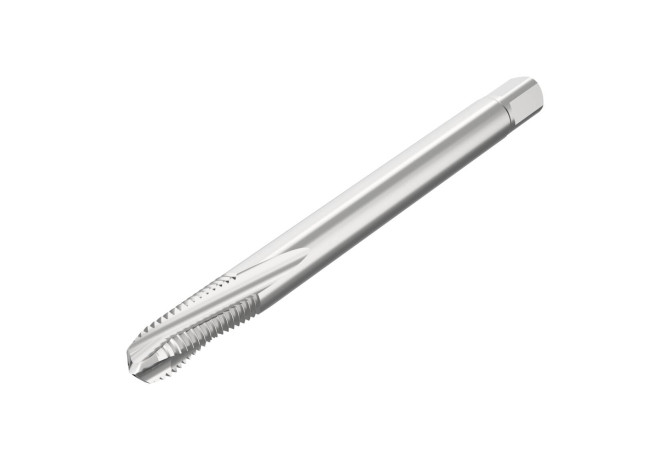

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank MTH-3/8-16UNJC3B-BC-S032

MTH-3/8-16UNJC3B-BC-S032

MTH-3/8-16UNJC3B-BC-S032 MTH-3/8-16UNJC3B-BC-S032 MTH-3/8-16UNJC3B-BC-S032 MTH-3/8-16UNJC3B-BC-S032

MTH-3/8-16UNJC3B-BC-S032

Seco
Артикул: 10001092
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01002105
FamilyProducts
MTH-3/8-16UNJC3B-BC-S032
FHA Flute helix angle
10 Degree
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
10001092
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
Name Identifying order number
MTH-3/8-16UNJC3B-BC-S032
NOF Flute count
3

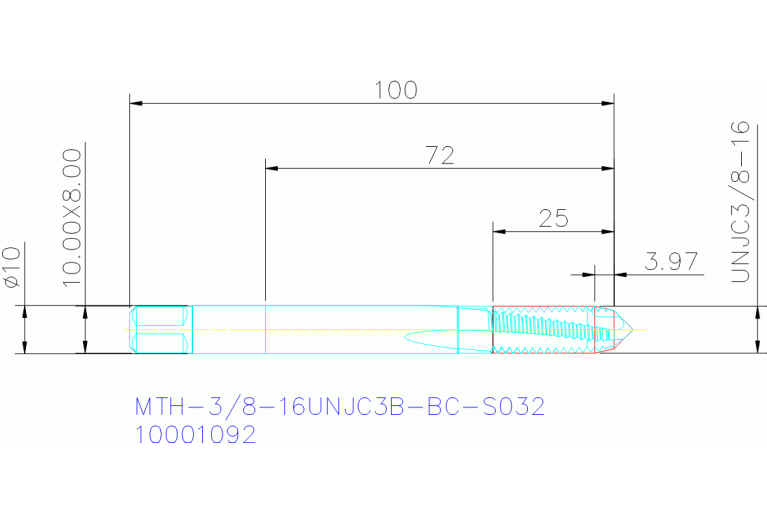

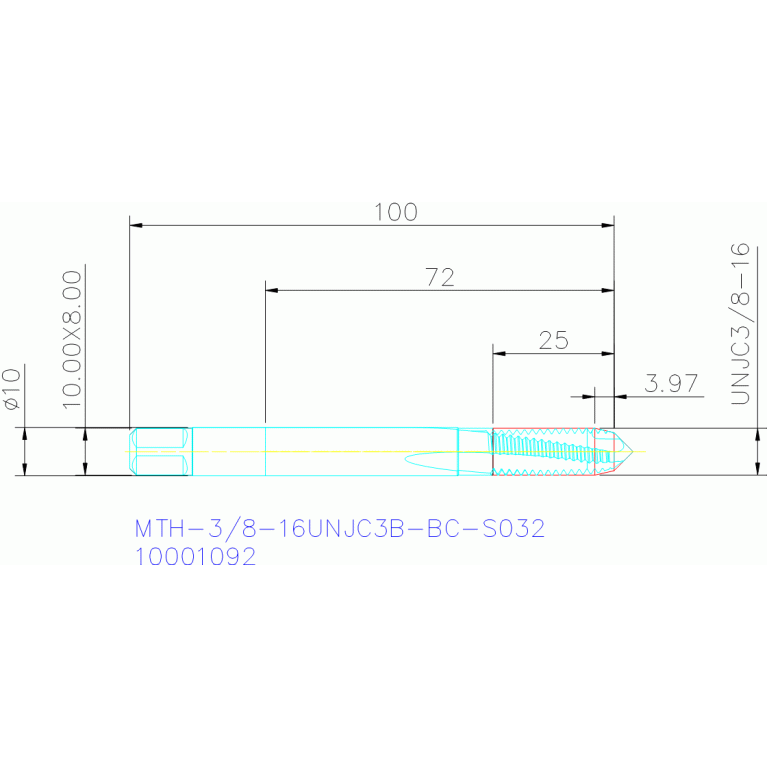

OAL Overall length
96.03 mm
PLCD Gate diameter
8.1 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN2184-1
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
3/8 in
THFT Thread form type
UNJC
THL Thread cutting part length
25 mm
THOD Thread designation
UNJC3/8-16-3B
TPI Threads per inch
16 1/in
Working process
BG - Tapping
WT Weight of item
0.051 kg
