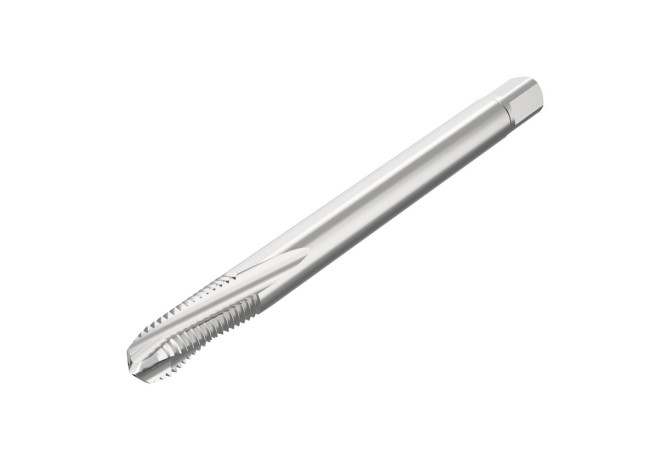

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank MTH-1/4-28UNJF3B-BC-S042

MTH-1/4-28UNJF3B-BC-S042

MTH-1/4-28UNJF3B-BC-S042 MTH-1/4-28UNJF3B-BC-S042 MTH-1/4-28UNJF3B-BC-S042 MTH-1/4-28UNJF3B-BC-S042

MTH-1/4-28UNJF3B-BC-S042

Seco
Артикул: 10001098
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00702105
FamilyProducts
MTH-1/4-28UNJF3B-BC-S042
FHA Flute helix angle
10 Degree
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
10001098
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105

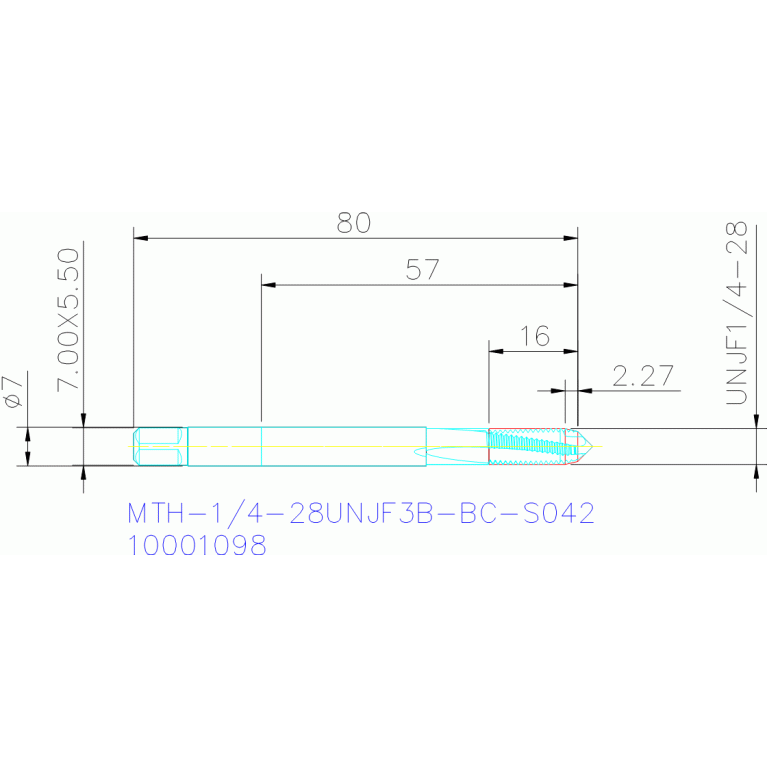

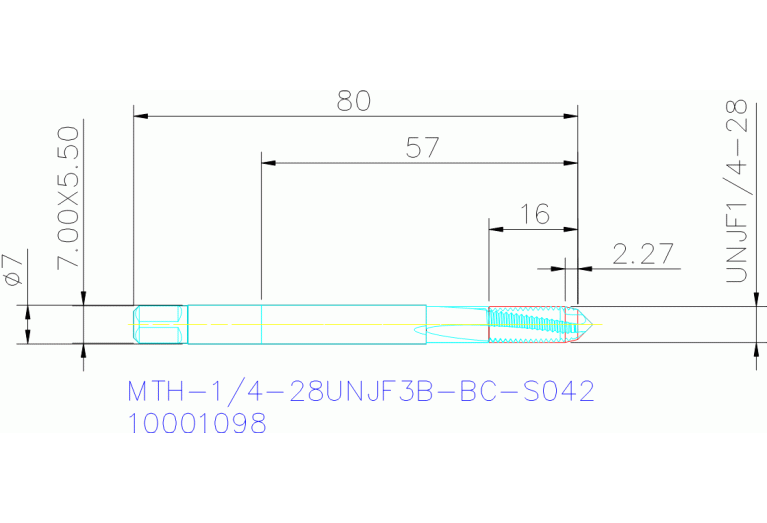

Name Identifying order number
MTH-1/4-28UNJF3B-BC-S042
NOF Flute count
3
OAL Overall length
77.73 mm
PLCD Gate diameter
5.6 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN2184-1
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
1/4 in
THFT Thread form type
UNJF
THL Thread cutting part length
16 mm
THOD Thread designation
UNJF1/4-28-3B
TPI Threads per inch
28 1/in
Working process
BG - Tapping
WT Weight of item
0.031 kg
