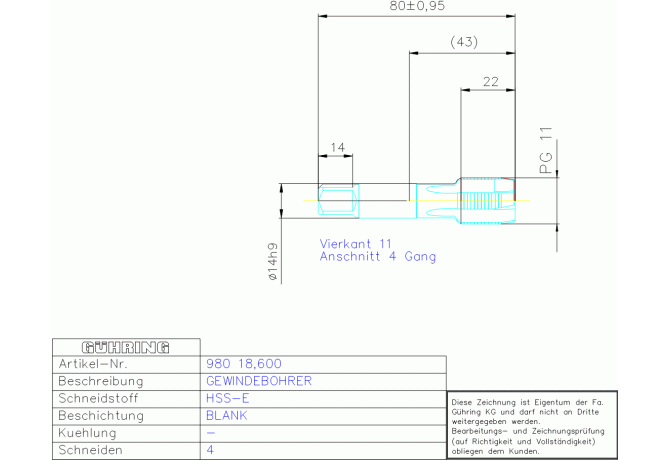

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 980 18.600

980 18.600

980 18.600 980 18.600

980 18.600

Gühring
Артикул: 9009800186000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01402105
DRVS Drive size
11 mm
FamilyProducts
HSS-E MA-GBO KURZ PG 11 DIN 40432RN B
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9009800186000
Interface codes
J6 / J61
ISO
ZYL21G1400h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21G1400h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01402105
LS Shank length
39.9 mm
Name Identifying order number
980 18.600
NOF Flute count
4
OAL Overall length
80 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN40432
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5.644 mm
TDZ Thread diameter size
11
THFT Thread form type
PG
THL Thread cutting part length
22 mm
TP Thread pitch
1.411 mm
TPI Threads per inch
18 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.101 kg
