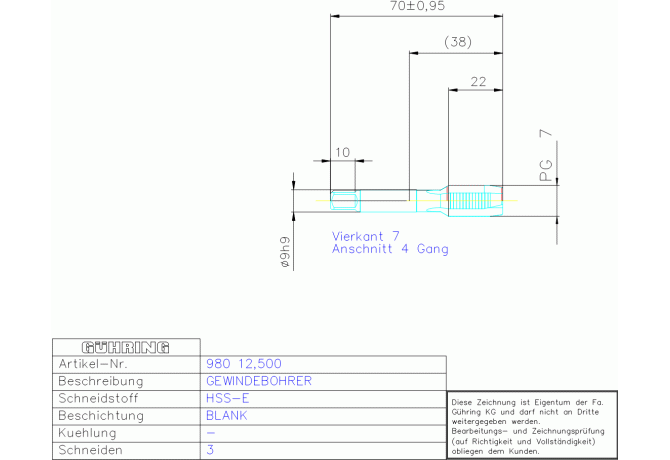

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 980 12.500

980 12.500

980 12.500 980 12.500

980 12.500

Gühring
Артикул: 9009800125000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00902105
DRVS Drive size
7 mm
FamilyProducts
HSS-E MA-GBO KURZ PG 7 DIN 40432RN B
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9009800125000
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LS Shank length
34.9 mm
Name Identifying order number
980 12.500
NOF Flute count
3
OAL Overall length
70 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN40432
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5.08 mm
TDZ Thread diameter size
7
THFT Thread form type
PG
THL Thread cutting part length
22 mm
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.034 kg
