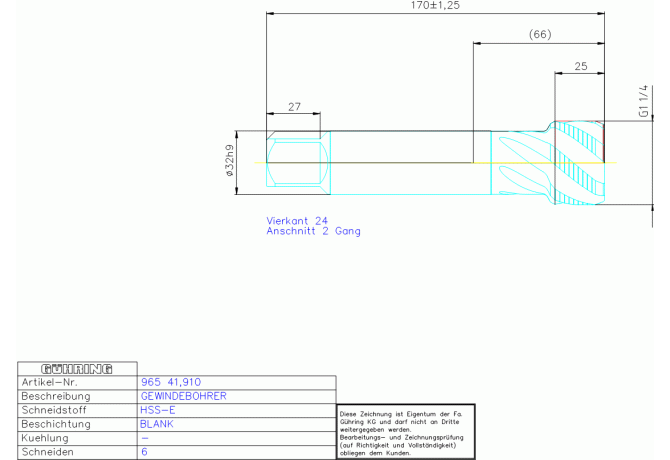

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 965 41.910

965 41.910

965 41.910 965 41.910

965 41.910

Gühring
Артикул: 9009650419100
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.062 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL03202105
DRVS Drive size
24 mm
FamilyProducts
HSS-E MA-GBO G1 1/4 VA-40 FORM C DIN5156
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
156.9 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9009650419100
Interface codes
J6 / J61
ISO
ZYL21G3200h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21G3200h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202105
LS Shank length
112.8 mm
Name Identifying order number
965 41.910
NOF Flute count
6
OAL Overall length
170 mm
PLCD Gate diameter
38.95 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 5156
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
4.618 mm
TDFR Thread diameter nominal fraction
1 1/4 in
TDIN Thread diameter nominal inch
1.25 in
THFT Thread form type
G
THL Thread cutting part length
25 mm
TP Thread pitch
2.309 mm
TPI Threads per inch
11 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.973 kg
