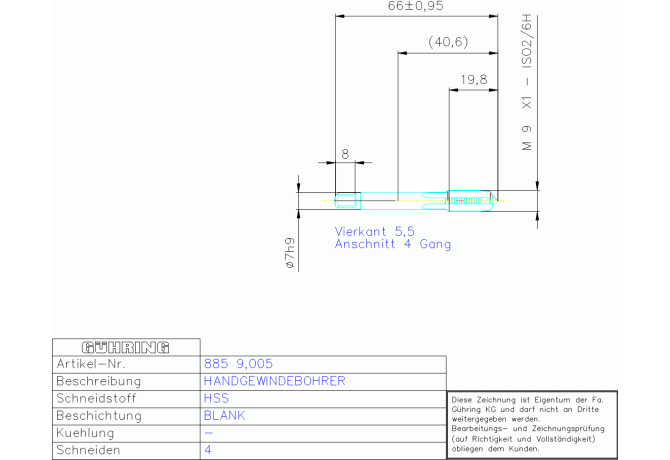

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 885 9.005

885 9.005

885 9.005 885 9.005

885 9.005

Gühring
Артикул: 9008850090050
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00702105
DRVS Drive size
5.5 mm
FamilyProducts
HSS HAND-GBO M 9X1 DIN 2181RN VORSCHNEID
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS
GRDPRIO Standard designation of the grade main application
HSS
HAND Cutting direction
R - Right
ID Technical product number
9008850090050
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105
LS Shank length
45.1 mm
Name Identifying order number
885 9.005
NOF Flute count
4
OAL Overall length
63 mm
PLCD Gate diameter
7.92 mm
PLG Plug style
D - Kappa r 8°
STDNO Standard
DIN2181
TAPSC Set identifier
V
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
4 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
9 mm
THFT Thread form type
MF
THL Thread cutting part length
17 mm
THOD Thread designation
MF9x1-ISO2/6H
TP Thread pitch
1 mm
TTPID Tap type identifier
2 - Hand tap
Working process
No working processes available
WT Weight of item
0.018 kg
