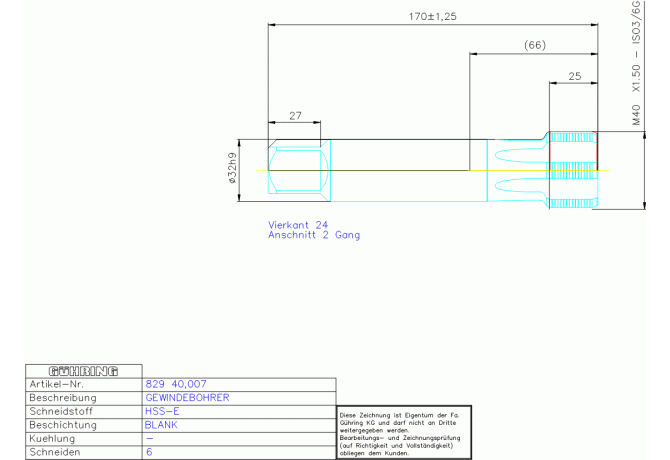

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 829 40.007

829 40.007

829 40.007 829 40.007

829 40.007

Gühring
Артикул: 9008290400070
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.062 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL03202105
DRVS Drive size
24 mm
FamilyProducts
HSS MASCHINEN-GBO M 40X1,5 DIN 374RN C
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9008290400070
Interface codes
J6 / J61
ISO
ZYL21G3200h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21G3200h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202105
LS Shank length
112.8 mm
Name Identifying order number
829 40.007
NOF Flute count
6
OAL Overall length
170 mm
PLCD Gate diameter
38.38 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3 mm
TCTR Thread tolerance class
ISO3/6G
TD Thread diameter
40 mm
THFT Thread form type
MF
THL Thread cutting part length
25 mm
THOD Thread designation
MF40x1.5-ISO3/6G
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.959 kg
