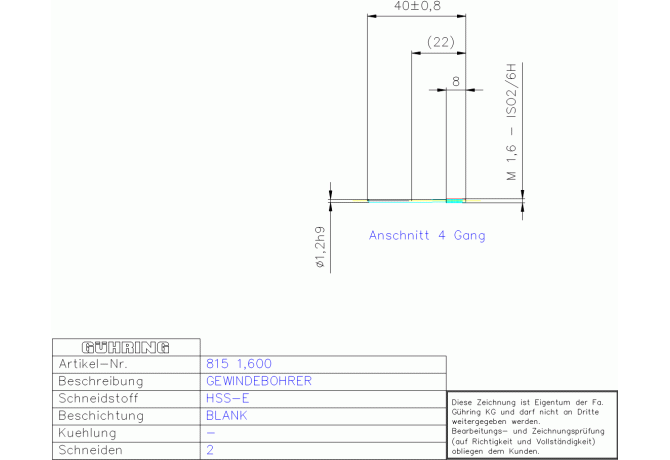

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 815 1.600

815 1.600

815 1.600 815 1.600

815 1.600

Gühring
Артикул: 9008150016000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.025 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00120105
FamilyProducts
HSS-E MA-GBO M 1,6 DIN 376RN FORM B
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9008150016000
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0012
LOC-03 DCONMS Diameter
1.2 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00120105
LS Shank length
31.7 mm
Name Identifying order number
815 1.600
NOF Flute count
2
OAL Overall length
40 mm
PLCD Gate diameter
1.22 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN376
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
1.4 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
1.6 mm
THFT Thread form type
M
THL Thread cutting part length
8 mm
THOD Thread designation
M1.6x0.35-ISO2/6H
TP Thread pitch
0.35 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.001 kg
