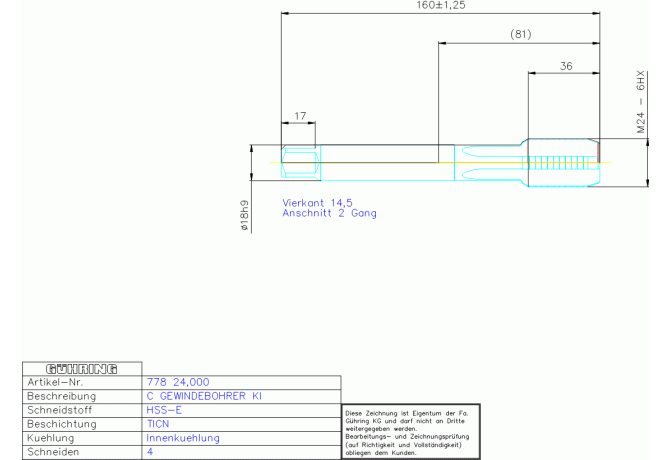

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 778 24.000

778 24.000

778 24.000 778 24.000

778 24.000

Gühring
Артикул: 9007780240000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TICN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
GS
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01802115
DRVS Drive size
14.5 mm
FamilyProducts
HSSE TICN KI-GBO M24 DIN376 HC ENERGY
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9007780240000
Interface codes
J6 / J61
ISO
ZYL21G1800h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21G1800h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802115
LS Shank length
86.9 mm
Name Identifying order number
778 24.000
NOF Flute count
4
OAL Overall length
160 mm
PLCD Gate diameter
20.85 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN376
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
6 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
24 mm
THFT Thread form type
M
THL Thread cutting part length
36 mm
THOD Thread designation
M24x3-6HX
TP Thread pitch
3 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.3 kg
