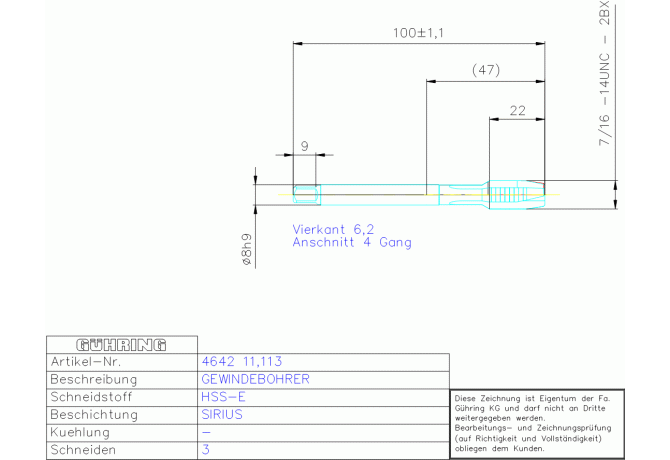

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 4642 11.113

4642 11.113

4642 11.113 4642 11.113

4642 11.113

Gühring
Артикул: 9046420111130
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
NANO-A
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00802105
DRVS Drive size
6.2 mm
FamilyProducts
HSS-E SIRIUS GBO VA-B 7/16 -14UNC 2BX
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9046420111130
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
LS Shank length
57.9 mm
Name Identifying order number
4642 11.113
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
9.15 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN376~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
7.256 mm
TCTR Thread tolerance class
2BX
TDFR Thread diameter nominal fraction
7/16 in
TDIN Thread diameter nominal inch
0.4375 in
THFT Thread form type
UNC
THL Thread cutting part length
22 mm
THOD Thread designation
UNC7/16-14-2BX
TP Thread pitch
1.814 mm
TPI Threads per inch
14 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.009 kg
