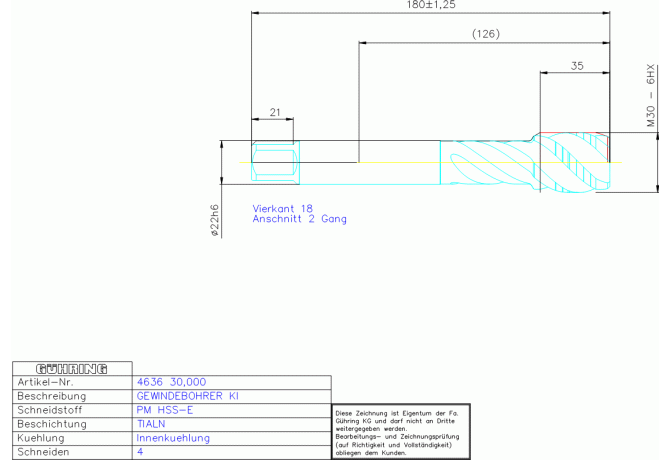

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 4636 30.000

4636 30.000

4636 30.000 4636 30.000

4636 30.000

Gühring
Артикул: 9046360300000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
NANO-A
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.013 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL02202115
DRVS Drive size
18 mm
FamilyProducts
PM HSSE TIALN KI-GBO VA45 FORMC M30 6HX
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
94.6 mm
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9046360300000
Interface codes
J6 / J61
ISO
ZYL02202115h$06
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL02202115h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02202115
LS Shank length
58 mm
Name Identifying order number
4636 30.000
NOF Flute count
4
OAL Overall length
180 mm
PLCD Gate diameter
26.21 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN376
TCDCONMS ISO-tolerance class shank diameter
h6
TCL Tap chamfer length
7 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
30 mm
THFT Thread form type
M
THL Thread cutting part length
35 mm
THOD Thread designation
M30x3.5-6HX
TP Thread pitch
3.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.465 kg
