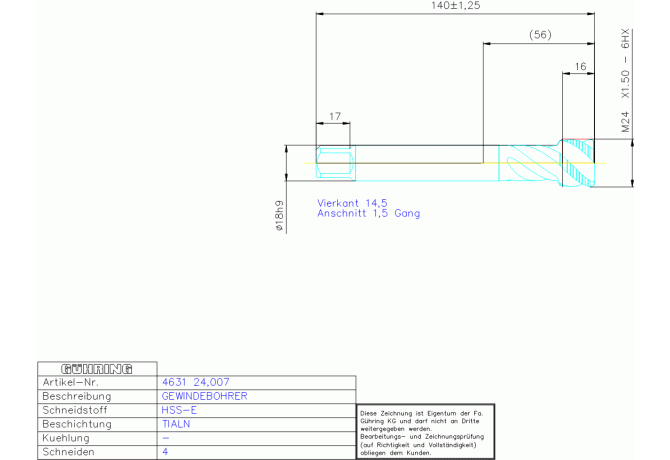

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 4631 24.007

4631 24.007

4631 24.007 4631 24.007

4631 24.007

Gühring
Артикул: 9046310240070
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
NANO-A
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01802105
DRVS Drive size
14.5 mm
FamilyProducts
HSSE TIALN GBO VA45 FORM E M24 X1,50 6HX
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
75.7 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9046310240070
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802105
LS Shank length
91.9 mm
Name Identifying order number
4631 24.007
NOF Flute count
4
OAL Overall length
140 mm
PLCD Gate diameter
22.38 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
DIN374
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.25 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
24 mm
THFT Thread form type
MF
THL Thread cutting part length
16 mm
THOD Thread designation
MF24x1.5-6HX
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.27 kg
