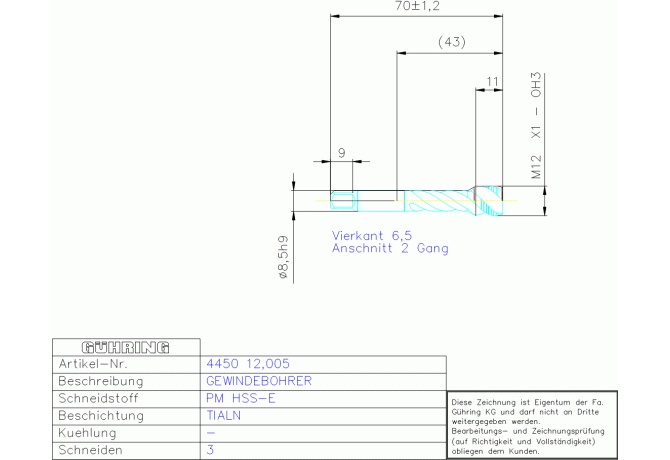

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 4450 12.005

4450 12.005

4450 12.005 4450 12.005

4450 12.005

Gühring
Артикул: 4450 12.005
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
NANO-A
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00852105
DRVS Drive size
6.5 mm
FamilyProducts
PM HSSE TIALN-GBO M12 X1 JISB4430 VA45
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
37.7 mm
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0085
LOC-03 DCONMS Diameter
8.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00852105
LS Shank length
29.9 mm
Name Identifying order number
4450 12.005
NOF Flute count
3
OAL Overall length
70 mm
PLCD Gate diameter
10.92 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
JIS B 4430
TCL Tap chamfer length
2 mm
TCTR Thread tolerance class
OH3
TD Thread diameter
12 mm
THFT Thread form type
MF
THL Thread cutting part length
11 mm
THOD Thread designation
MF12x1-OH3
TP Thread pitch
1 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.033 kg
