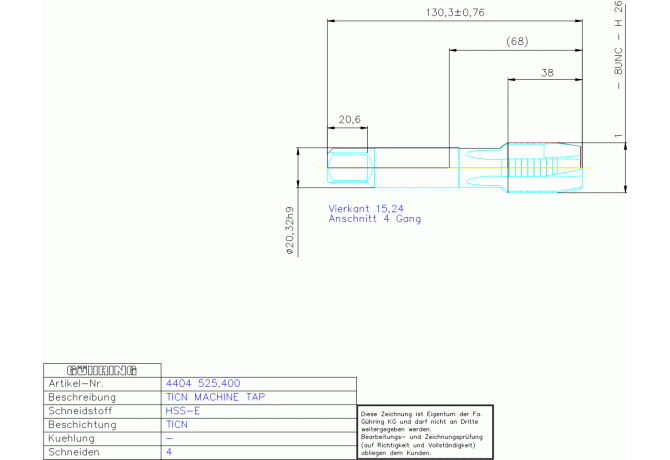

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 4404 525.400

4404 525.400

4404 525.400 4404 525.400

4404 525.400

Gühring
Артикул: 4404 525.400
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TICN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.052 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL02032105
DRVS Drive size
15.24 mm
FamilyProducts
HSSE TICN ANSI PT-GBO B 1 - 8 UNC H 5
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0203
LOC-03 DCONMS Diameter
20.32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02032105
LS Shank length
67.1 mm
Name Identifying order number
4404 525.400
NOF Flute count
4
OAL Overall length
130.3 mm
PLCD Gate diameter
21.96 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
WN 376
TCL Tap chamfer length
12.7 mm
TDFR Thread diameter nominal fraction
1 in
TDIN Thread diameter nominal inch
1 in
THFT Thread form type
UNC
THL Thread cutting part length
38 mm
TP Thread pitch
3.175 mm
TPI Threads per inch
8 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.314 kg
