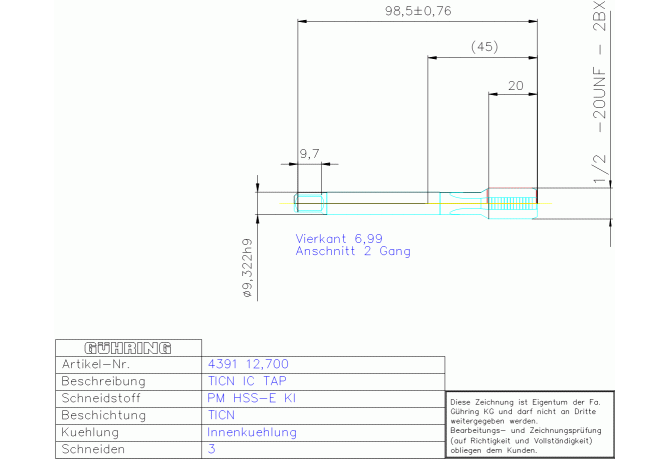

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 4391 12.700

4391 12.700

4391 12.700 4391 12.700

4391 12.700

Gühring
Артикул: 4391 12.700
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TICN
COMPC Company code
GG - Gühring
CRCLDIN Chip removal class
H
CRCLMFG Chip removal class mfg
HS
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00932115
DRVS Drive size
6.99 mm
FamilyProducts
PM HSS-E KZ-GBO TICN DIN/ANSI UNF HC
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0093
LOC-03 DCONMS Diameter
9.322 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00932115
LS Shank length
59.9 mm
Name Identifying order number
4391 12.700
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
11.33 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
WN 372
TCL Tap chamfer length
2.54 mm
TCTR Thread tolerance class
2BX
TDFR Thread diameter nominal fraction
1/2 in
TDIN Thread diameter nominal inch
0.5 in
THFT Thread form type
UNF
THL Thread cutting part length
20 mm
THOD Thread designation
UNF1/2-20-2BX
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.053 kg
