Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 4376 19.050

4376 19.050

4376 19.050 4376 19.050

4376 19.050

Gühring

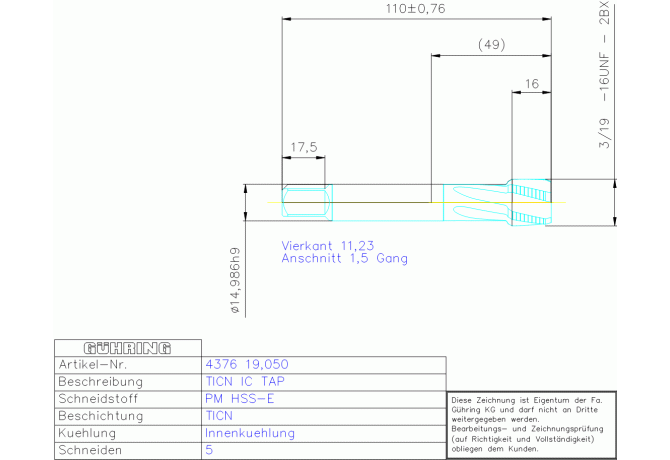

Артикул: 4376 19.050
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TICN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
HK
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL01492115
DRVS Drive size
11.23 mm
FamilyProducts
PMHSSE C-KZ-GBO 3/4-16 UNF DIN/ANSI HK15
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
223.4 mm
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0149
LOC-03 DCONMS Diameter
14.986 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01492115
LS Shank length
65.9 mm
Name Identifying order number
4376 19.050
NOF Flute count
5
OAL Overall length
110 mm
PLCD Gate diameter
17.33 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
WN 372
TCL Tap chamfer length
2.381 mm
TCTR Thread tolerance class
2BX
TDFR Thread diameter nominal fraction
3/4 in
TDIN Thread diameter nominal inch
0.75 in
THFT Thread form type
UNF
THL Thread cutting part length
16 mm
THOD Thread designation
UNF3/4-16-2BX
TP Thread pitch
1.587 mm
TPI Threads per inch
16 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.137 kg
