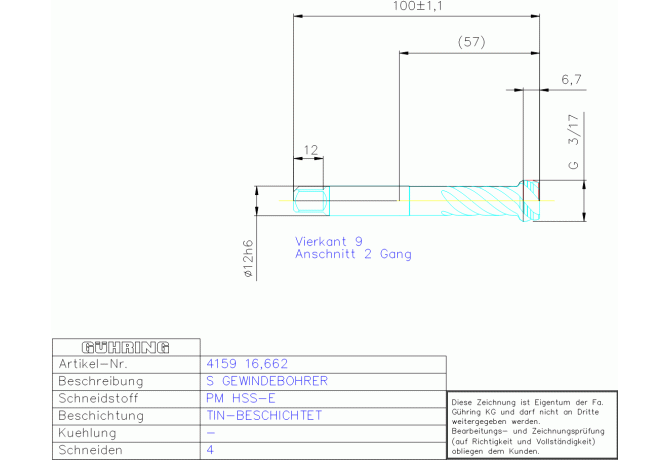

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 4159 16.662

4159 16.662

4159 16.662 4159 16.662

4159 16.662

Gühring
Артикул: 9041590166620
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.011 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01202105
DRVS Drive size
9 mm
FamilyProducts
PM HSSE S-GBO G 3/8 DIN5156 VA-R50
FHA Flute helix angle
50 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
43.9 mm
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9041590166620
Interface codes
J6 / J61
ISO
ZYL21G1200h$06
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL21G1200h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202105
LS Shank length
47 mm
Name Identifying order number
4159 16.662
NOF Flute count
4
OAL Overall length
100 mm
PLCD Gate diameter
14.95 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 5156
TCDCONMS ISO-tolerance class shank diameter
h6
TCL Tap chamfer length
2.674 mm
TDFR Thread diameter nominal fraction
3/8 in
TDIN Thread diameter nominal inch
0.375 in
THFT Thread form type
G
THL Thread cutting part length
6.7 mm
TP Thread pitch
1.337 mm
TPI Threads per inch
19 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.084 kg
