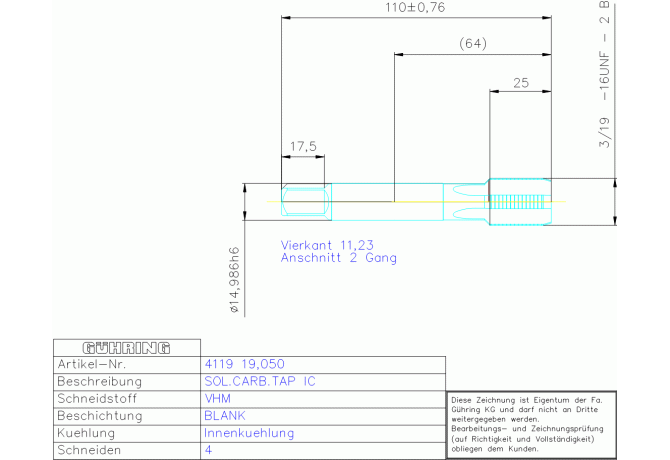

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 4119 19.050

4119 19.050

4119 19.050 4119 19.050

4119 19.050

Gühring
Артикул: 4119 19.050
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.011 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL01492115
DRVS Drive size
11.23 mm
FamilyProducts
VHM KI-GBO DIN/ANSI H-C 3/4 -16 UNF
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HF-K
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0149
LOC-03 DCONMS Diameter
14.986 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01492115
LS Shank length
50 mm
Name Identifying order number
4119 19.050
NOF Flute count
4
OAL Overall length
110 mm
PLCD Gate diameter
17.33 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
WN 372
TCL Tap chamfer length
3.174 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
3/4 in
TDIN Thread diameter nominal inch
0.75 in
THFT Thread form type
UNF
THL Thread cutting part length
25 mm
THOD Thread designation
UNF3/4-16-2B
TP Thread pitch
1.587 mm
TPI Threads per inch
16 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.175 kg
