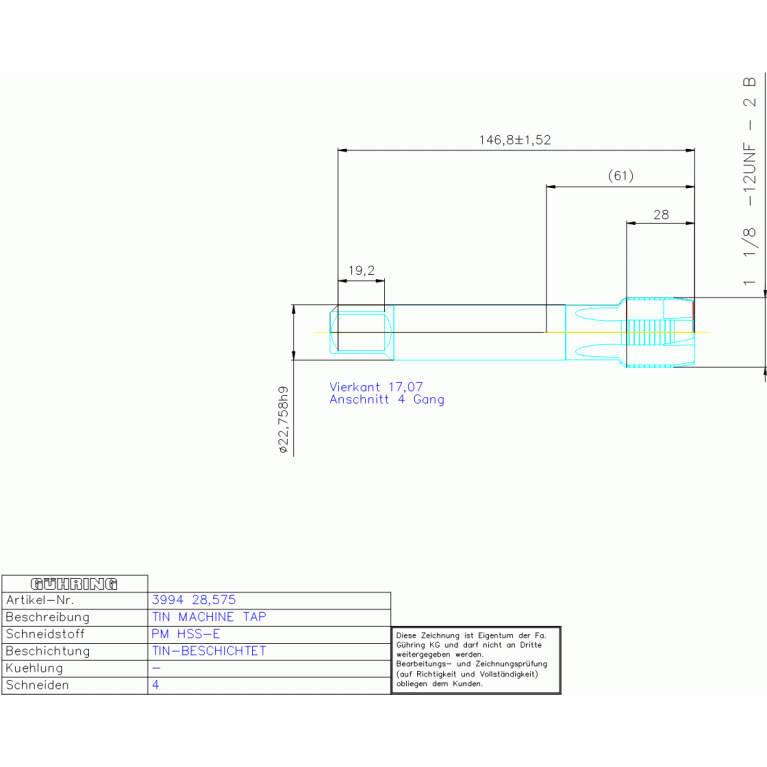

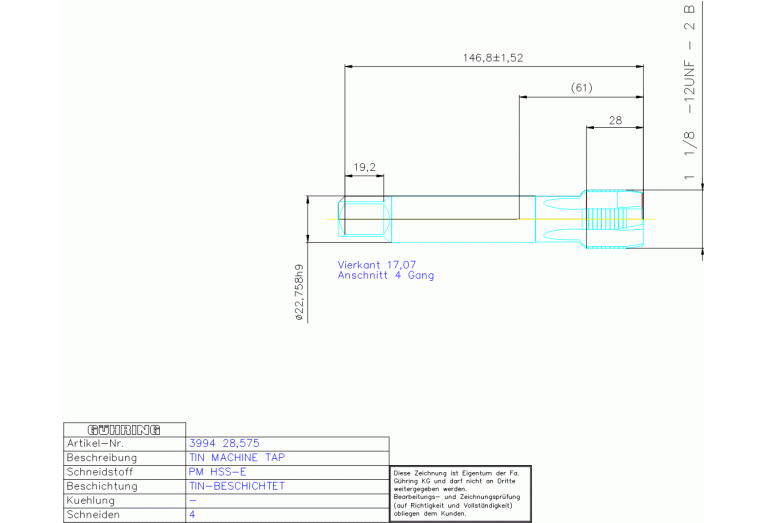

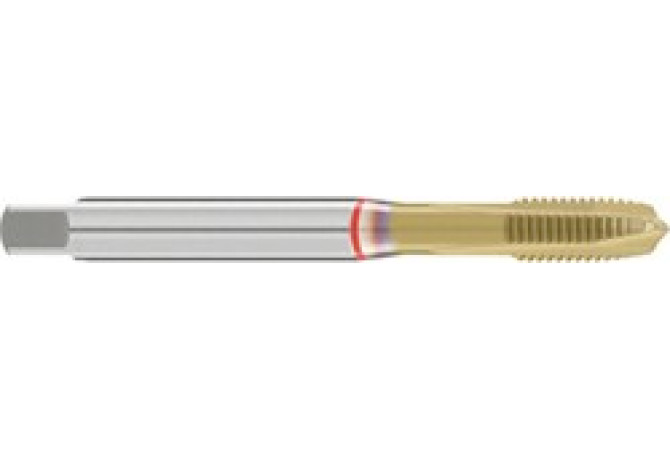

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 3994 28.575

3994 28.575

3994 28.575 3994 28.575 3994 28.575 3994 28.575

3994 28.575

Gühring
Артикул: 3994 28.575
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
HS
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.052 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL02272105
DRVS Drive size
17.07 mm
FamilyProducts
PM HSSE S-GBO H-B 1 1/8 -12 UNF DIN/ANSI
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0227
LOC-03 DCONMS Diameter
22.758 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02272105
LS Shank length
96.8 mm
Name Identifying order number
3994 28.575
NOF Flute count
4
OAL Overall length
150 mm
PLCD Gate diameter
26.28 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
WN 372
TCL Tap chamfer length
8.468 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
1 1/8 in
TDIN Thread diameter nominal inch
1.125 in
THFT Thread form type
UNF
THL Thread cutting part length
28 mm
THOD Thread designation
UNF1 1/8-12-2B
TP Thread pitch
2.117 mm
TPI Threads per inch
12 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.546 kg
