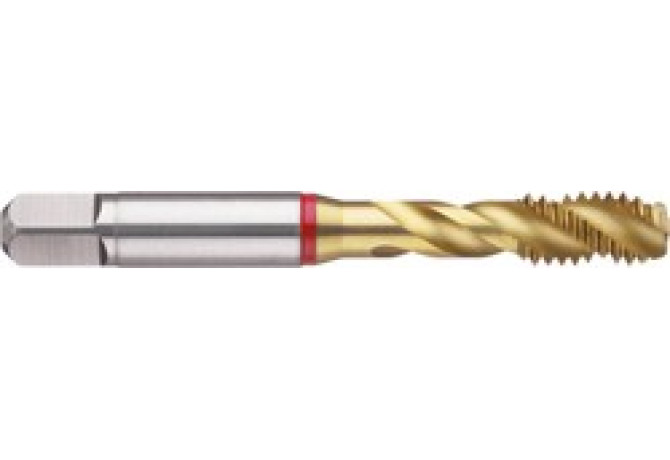

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 3993 34.925

3993 34.925

3993 34.925 3993 34.925 3993 34.925 3993 34.925

3993 34.925

Gühring
Артикул: 3993 34.925
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
HS
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.052 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL02812105
DRVS Drive size
21.11 mm
FamilyProducts
PM HSSE S-GBO H40 1 3/8 - 6 UNC DIN/ANSI
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
130.8 mm
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass

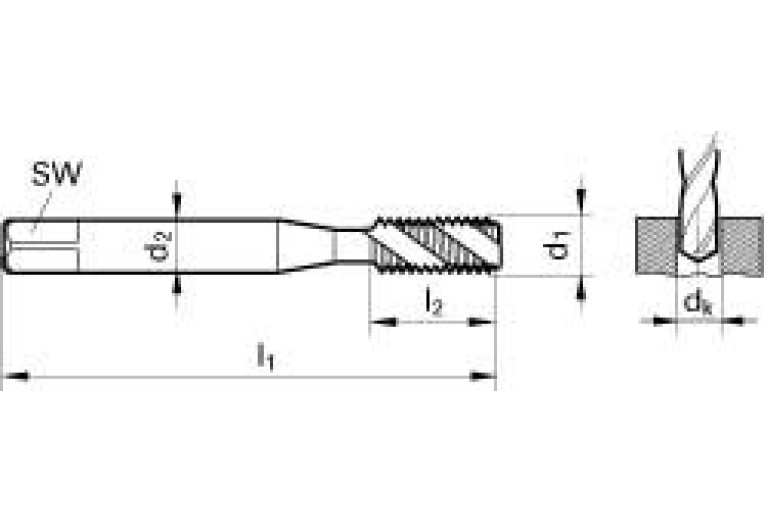

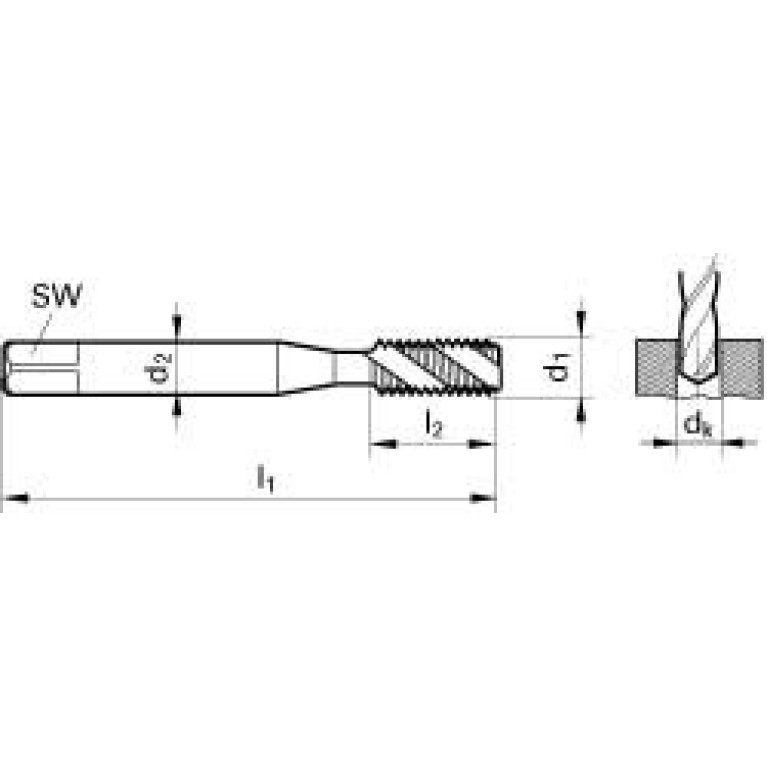

301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0281
LOC-03 DCONMS Diameter
28.143 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02812105
LS Shank length
108.8 mm
Name Identifying order number

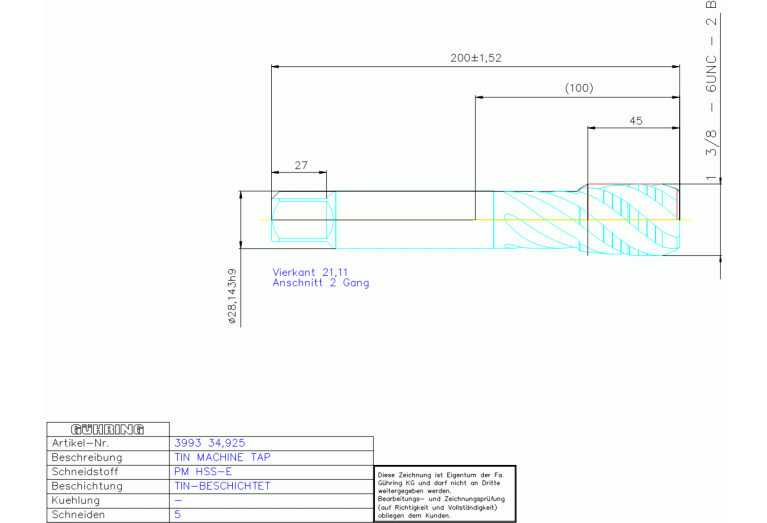

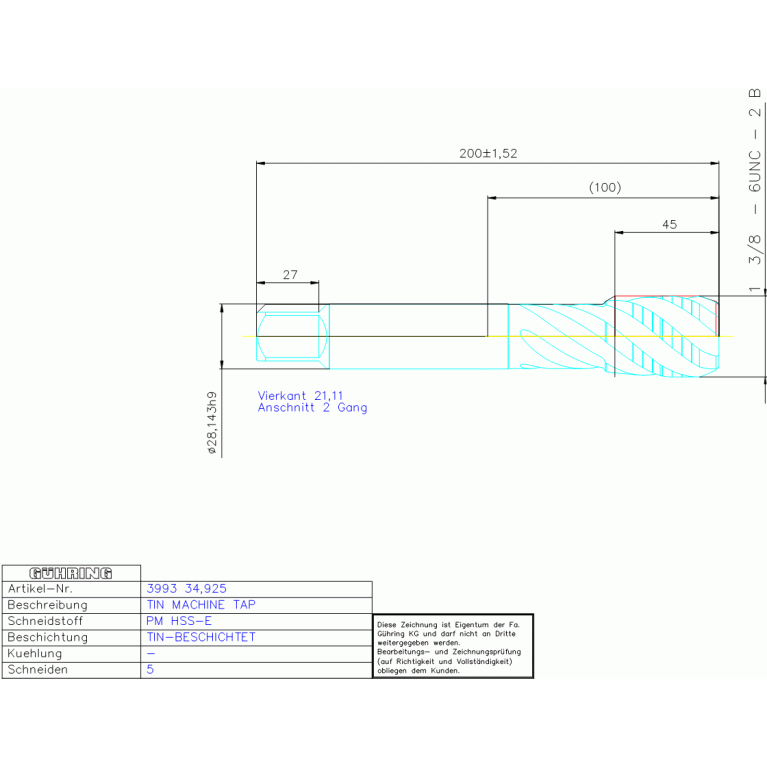

3993 34.925
NOF Flute count
5
OAL Overall length
200 mm
PLCD Gate diameter
30.34 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
WN 371
TCL Tap chamfer length
8.466 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
1 3/8 in
TDIN Thread diameter nominal inch
1.375 in
THFT Thread form type
UNC
THL Thread cutting part length
45 mm
THOD Thread designation
UNC1 3/8-6-2B
TP Thread pitch
4.233 mm
TPI Threads per inch
6 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
1.088 kg
