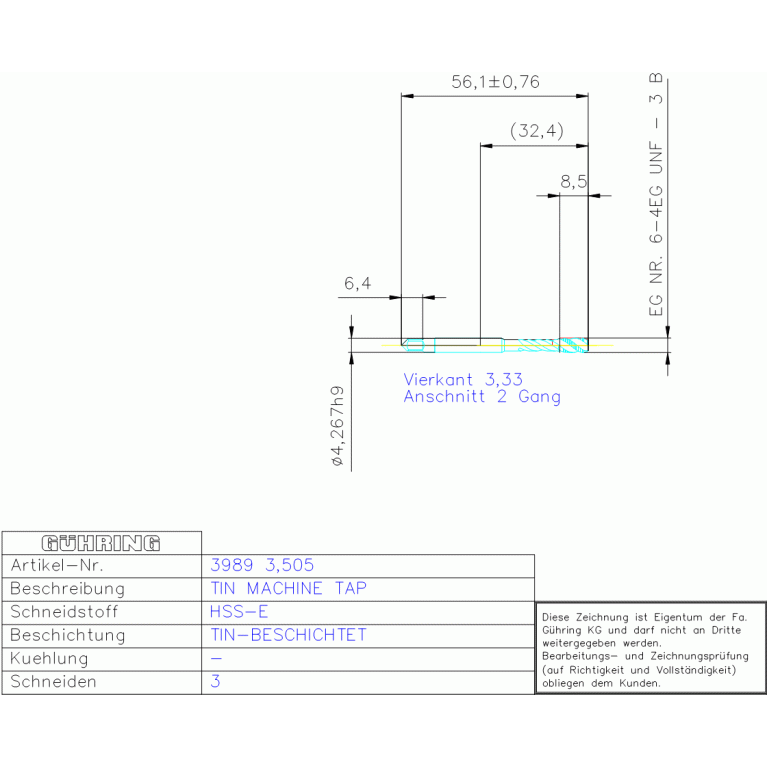

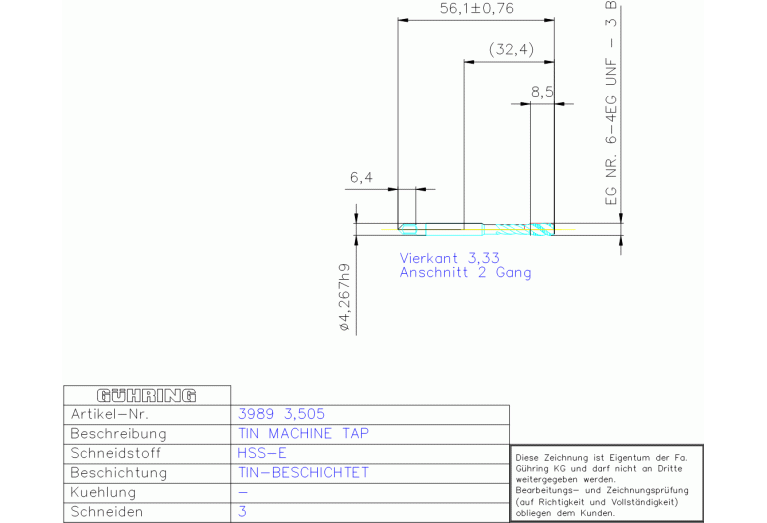

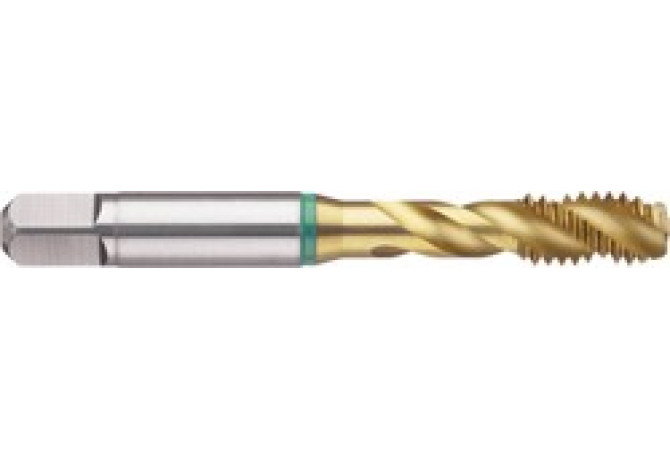

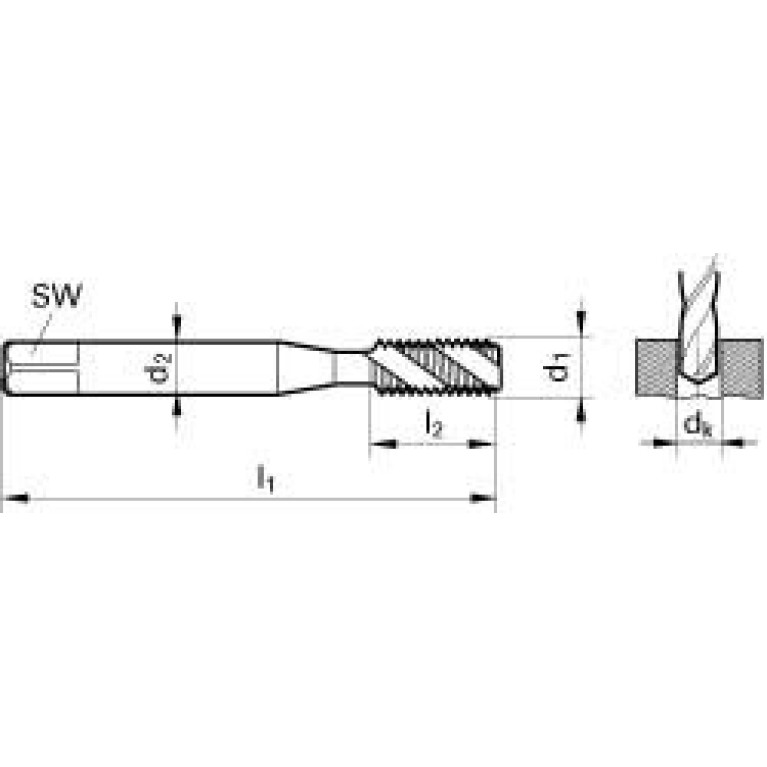

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 3989 3.505

3989 3.505

3989 3.505 3989 3.505 3989 3.505 3989 3.505

3989 3.505

Gühring
Артикул: 3989 3.505
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00422105
DRVS Drive size
3.33 mm
FamilyProducts
HSSE TIN GBO UN-40°C EG NR,6-40 UNF 3 B
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
32.65 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0042
LOC-03 DCONMS Diameter
4.267 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00422105
LS Shank length
28.3 mm
Name Identifying order number
3989 3.505
NOF Flute count
3
OAL Overall length
54 mm
PLCD Gate diameter
3.64 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
WN 378
TCL Tap chamfer length
1.27 mm
TCTR Thread tolerance class
3B
TDZ Thread diameter size
6
THFT Thread form type
EG UNF
THL Thread cutting part length
8.5 mm
TP Thread pitch
0.635 mm
TPI Threads per inch
40 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.005 kg
