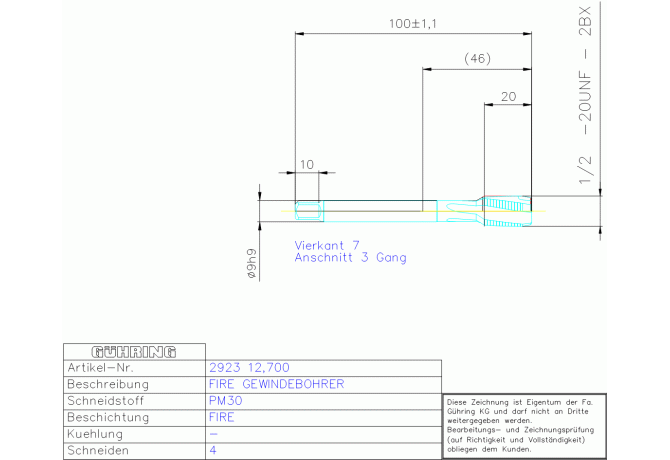

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 2923 12.700

2923 12.700

2923 12.700 2923 12.700

2923 12.700

Gühring
Артикул: 9029230127000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
FIRE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
NI
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00902105
DRVS Drive size
7 mm
FamilyProducts
PM HSSE FIRE GBO 1/2 -20 UNF DIN 374 NI
FHA Flute helix angle
10 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
227.9 mm
GRD2ND Standard designation of the grade 2nd application
PM30
GRDMFG Grade manufacturers designation
PM30
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9029230127000
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LS Shank length
59.9 mm
Name Identifying order number
2923 12.700
NOF Flute count
4
OAL Overall length
100 mm
PLCD Gate diameter
11.4 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN374~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.81 mm
TCTR Thread tolerance class
2BX
TDFR Thread diameter nominal fraction
1/2 in
TDIN Thread diameter nominal inch
0.5 in
THFT Thread form type
UNF
THL Thread cutting part length
20 mm
THOD Thread designation
UNF1/2-20-2BX
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.056 kg
