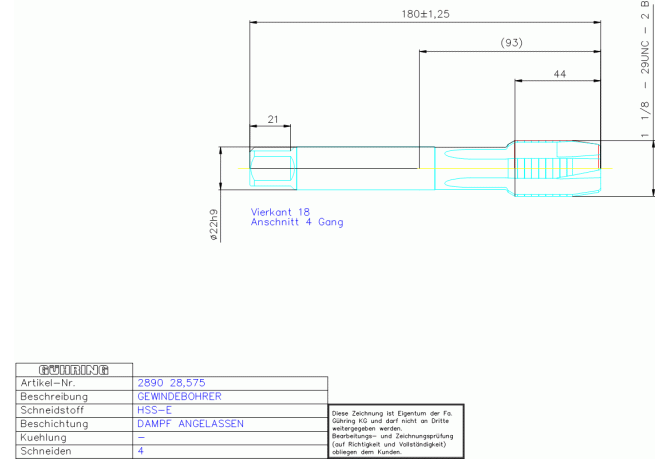

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 2890 28.575

2890 28.575

2890 28.575 2890 28.575

2890 28.575

Gühring
Артикул: 9028900285750
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
DAMPF ANGELASSEN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.052 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL02202105
DRVS Drive size
18 mm
FamilyProducts
HSS-E MA,-GBO UNC 1 1/8-7 DIN 376RN
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9028900285750
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02202105
LS Shank length
94.8 mm
Name Identifying order number
2890 28.575
NOF Flute count
4
OAL Overall length
180 mm
PLCD Gate diameter
24.65 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN376~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
14.516 mm
TCTR Thread tolerance class
2 B
TDFR Thread diameter nominal fraction
1 1/8 in
TDIN Thread diameter nominal inch
1.125 in
THFT Thread form type
UNC
THL Thread cutting part length
44 mm
THOD Thread designation
UNC1 1/8-7-2 B
TP Thread pitch
3.629 mm
TPI Threads per inch
7 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.489 kg
