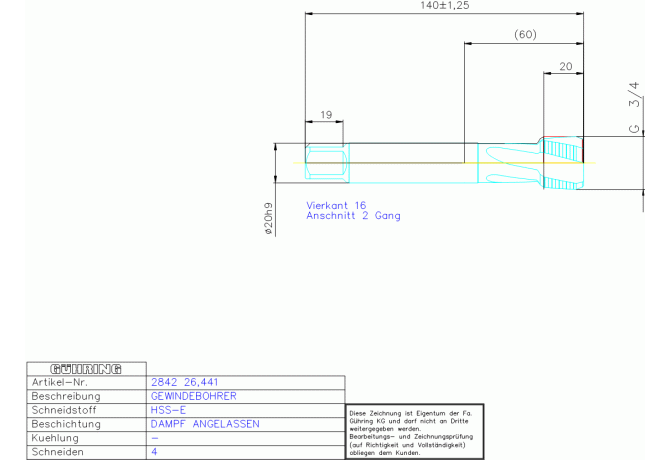

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 2842 26.441

2842 26.441

2842 26.441 2842 26.441

2842 26.441

Gühring
Артикул: 9028420264410
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
DAMPF ANGELASSEN
COMPC Company code
GG - Gühring
CRCLDIN Chip removal class
N
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.052 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL02002105
DRVS Drive size
16 mm
FamilyProducts
HSS-E MA,-GBO BSP G3/4-14 DIN5156N R15
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
310.9 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9028420264410
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002105
LS Shank length
86.8 mm
Name Identifying order number
2842 26.441
NOF Flute count
4
OAL Overall length
140 mm
PLCD Gate diameter
24.12 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN5156
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.628 mm
TDFR Thread diameter nominal fraction
3/4 in
TDIN Thread diameter nominal inch
0.75 in
THFT Thread form type
G
THL Thread cutting part length
20 mm
TP Thread pitch
1.814 mm
TPI Threads per inch
14 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.332 kg
