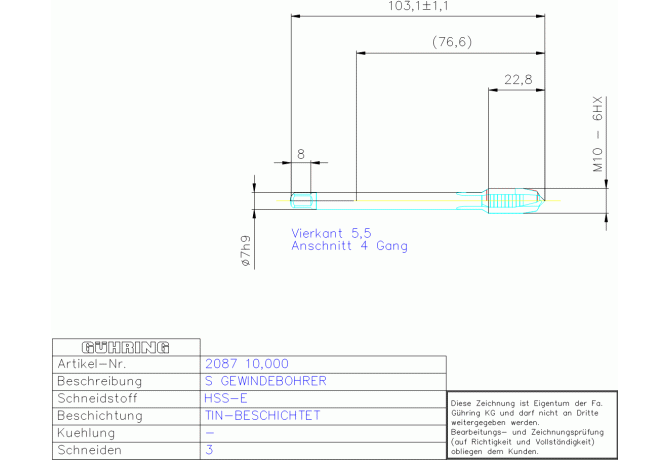

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 2087 10.000

2087 10.000

2087 10.000 2087 10.000

2087 10.000

Gühring
Артикул: 9020870100000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00702105
DRVS Drive size
5.5 mm
FamilyProducts
HSS-E S MA-GBO M10 6HX DIN376 VA-B
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9020870100000
Interface codes
J6 / J61
ISO
ZYL21F7000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21F7000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105
LS Shank length
78.4 mm
Name Identifying order number
2087 10.000
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
8.2 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN 376
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
6 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
10 mm
THFT Thread form type
M
THL Thread cutting part length
20 mm
THOD Thread designation
M10x1.5-6HX
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.03 kg
