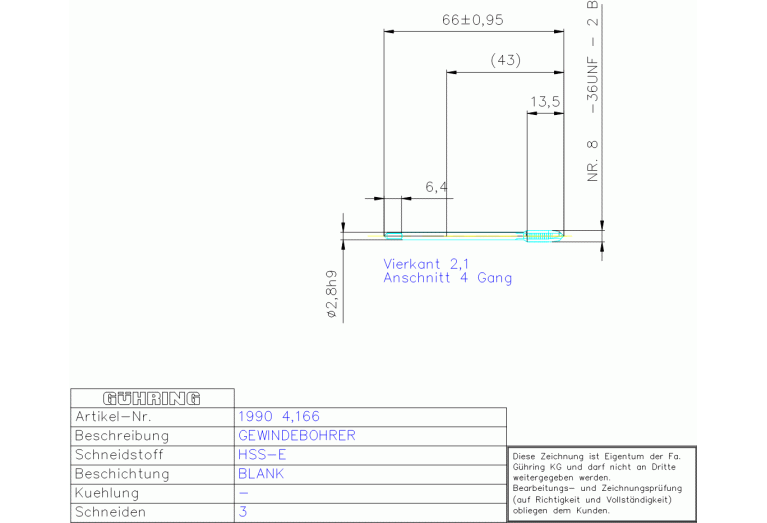

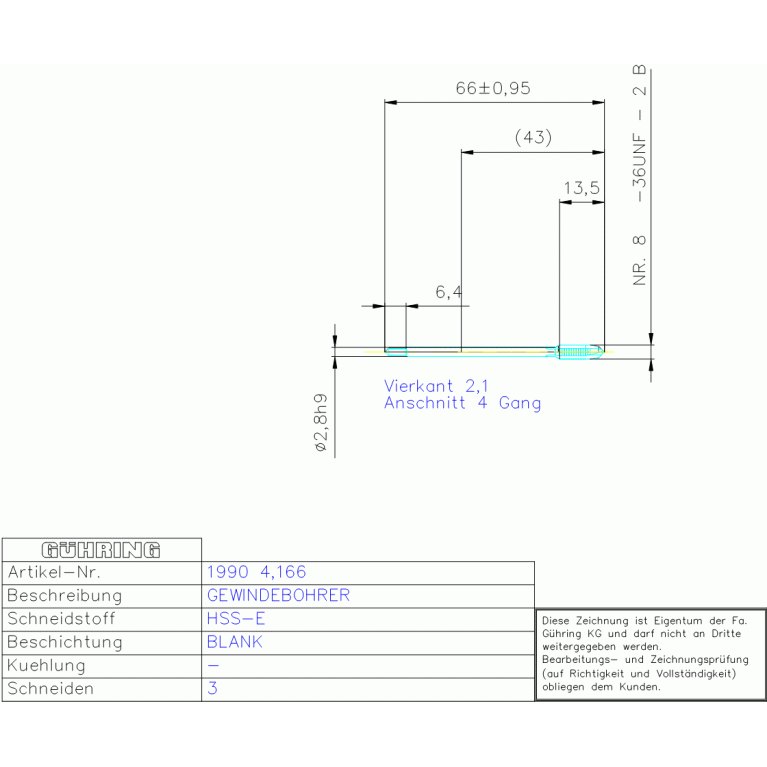

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1990 4.166

1990 4.166

1990 4.166 1990 4.166 1990 4.166 1990 4.166

1990 4.166

Gühring
Артикул: 1990 4.166
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.025 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00282105
DRVS Drive size
2.1 mm
FamilyProducts
HSS-E MASCH,-GBO UNF NR. 8-36 DIN 374RN
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0028
LOC-03 DCONMS Diameter
2.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00282105
LS Shank length
50.2 mm
Name Identifying order number
1990 4.166
NOF Flute count
3
OAL Overall length
63 mm
PLCD Gate diameter
3.4 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN 374~
TCL Tap chamfer length
2.824 mm
TCTR Thread tolerance class
2B
TDZ Thread diameter size
8
THFT Thread form type
UNF
THL Thread cutting part length
12 mm
THOD Thread designation
UNF8-36-2B
TP Thread pitch
0.706 mm
TPI Threads per inch
36 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.001 kg
