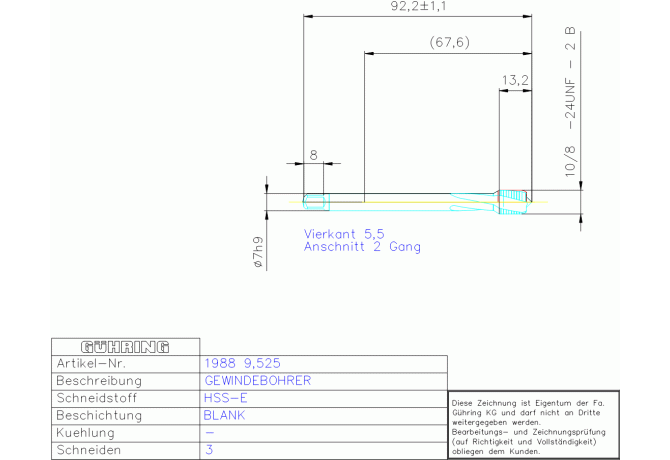

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1988 9.525

1988 9.525

1988 9.525 1988 9.525

1988 9.525

Gühring
Артикул: 9019880095250
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00702105
DRVS Drive size
5.5 mm
FamilyProducts
HSS-E MASCH,-GBO UNF 3/8-24 DIN 374RN FO
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
111.7 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9019880095250
Interface codes
J6 / J61
ISO
ZYL21F7000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21F7000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105
LS Shank length
77.7 mm
Name Identifying order number
1988 9.525
NOF Flute count
3
OAL Overall length
90 mm
PLCD Gate diameter
8.38 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.116 mm
TCTR Thread tolerance class
2 B
TDFR Thread diameter nominal fraction
3/8 in
TDIN Thread diameter nominal inch
0.375 in
THFT Thread form type
UNF
THL Thread cutting part length
11 mm
THOD Thread designation
UNF3/8-24-2 B
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.001 kg
