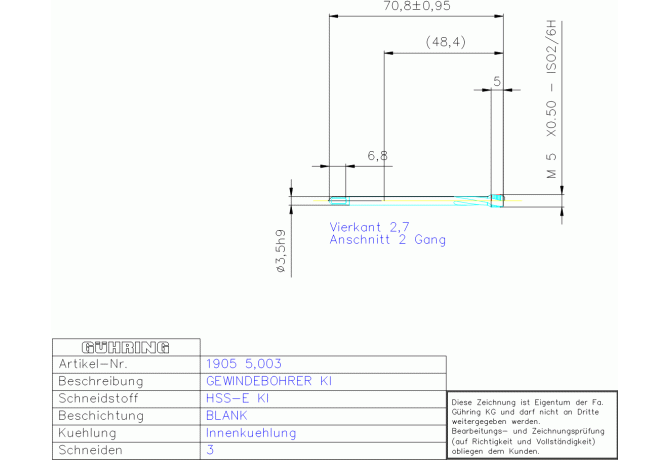

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1905 5.003

1905 5.003

1905 5.003 1905 5.003

1905 5.003

Gühring
Артикул: 9019050050030
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00352115
DRVS Drive size
2.7 mm
FamilyProducts
HSS-E IKZ GBO M 5X0,5 DIN374 TYP N15
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
58.6 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9019050050030
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0035
LOC-03 DCONMS Diameter
3.5 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352115
LS Shank length
64.2 mm
Name Identifying order number
1905 5.003
NOF Flute count
3
OAL Overall length
70 mm
PLCD Gate diameter
4.46 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
1 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
5 mm
THFT Thread form type
MF
THL Thread cutting part length
5 mm
THOD Thread designation
MF5x0.5-ISO2/6H
TP Thread pitch
0.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.008 kg
