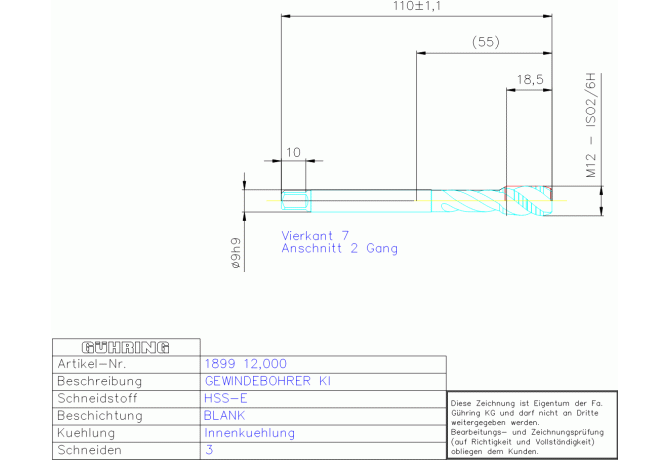

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1899 12.000

1899 12.000

1899 12.000 1899 12.000

1899 12.000

Gühring
Артикул: 9018990120000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00902115
DRVS Drive size
7 mm
FamilyProducts
HSS-E IKZ-GBO M12 DIN 376RH TYP VA-B
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
44.9 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9018990120000
Interface codes
J6 / J61
ISO
ZYL21F9000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21F9000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902115
LS Shank length
60.9 mm
Name Identifying order number
1899 12.000
NOF Flute count
3
OAL Overall length
110 mm
PLCD Gate diameter
10.11 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 376
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.5 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
12 mm
THFT Thread form type
M
THL Thread cutting part length
18.5 mm
THOD Thread designation
M12x1.75-ISO2/6H
TP Thread pitch
1.75 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.071 kg
