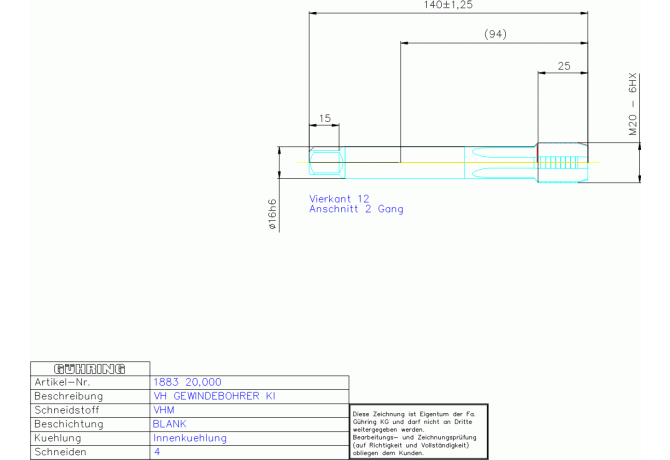

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1883 20.000

1883 20.000

Артикул: 9018830200000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01602115

DRVS Drive size

12 mm

FamilyProducts

HM MASCHINEN-GBO KI 20,000 WN 50RH FORM

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9018830200000

Interface codes

J6 / J61

ISO

ZYL21G1600h$06

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL21G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602115

LS Shank length

50 mm

Name Identifying order number

1883 20.000

NOF Flute count

OAL Overall length

140 mm

PLCD Gate diameter

17.29 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 376

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

5 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

20 mm

THFT Thread form type

THL Thread cutting part length

25 mm

THOD Thread designation

M20x2.5-6HX

TP Thread pitch

2.5 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.25 kg
