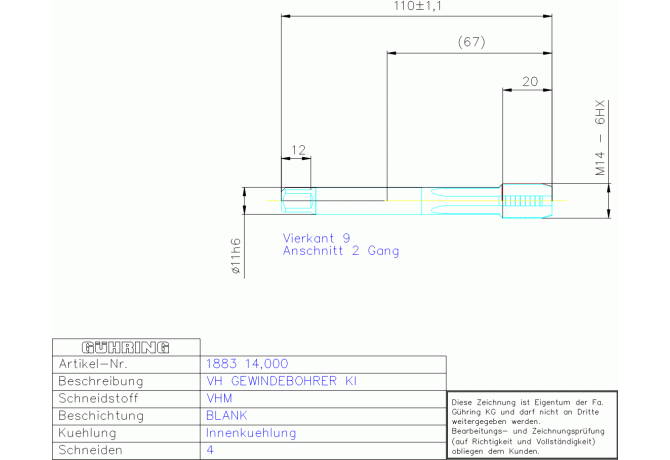

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1883 14.000

1883 14.000

1883 14.000 1883 14.000

1883 14.000

Gühring
Артикул: 9018830140000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.011 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01102115
DRVS Drive size
9 mm
FamilyProducts
VHM MA-GBO KI M14 DIN 376 FORM C
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HF-K
HAND Cutting direction
R - Right
ID Technical product number
9018830140000
Interface codes
J6 / J61
ISO
ZYL21G1100h$06
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0110
LOC-03 DCONMS Diameter
11 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL21G1100h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102115
LS Shank length
47 mm
Name Identifying order number
1883 14.000
NOF Flute count
4
OAL Overall length
110 mm
PLCD Gate diameter
11.84 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 376
TCDCONMS ISO-tolerance class shank diameter
h6
TCL Tap chamfer length
4 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
14 mm
THFT Thread form type
M
THL Thread cutting part length
20 mm
THOD Thread designation
M14x2-6HX
TP Thread pitch
2 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.096 kg
