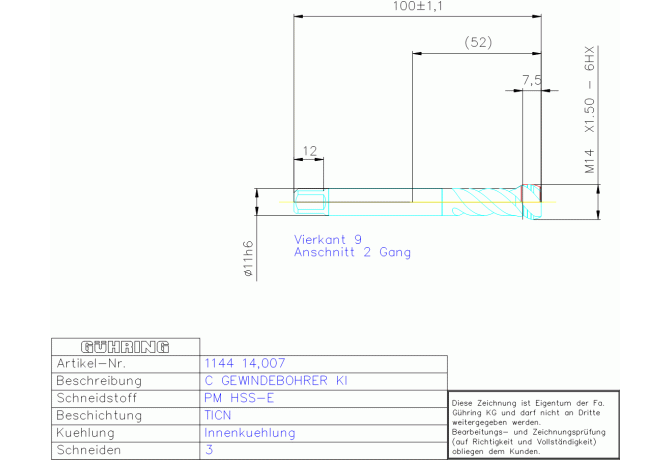

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1144 14.007

1144 14.007

1144 14.007 1144 14.007

1144 14.007

Gühring
Артикул: 9011440140070
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
TICN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.011 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01102115
DRVS Drive size
9 mm
FamilyProducts
PM HSS-E KI C-MAGBO M14 X1,5 DIN374 VA50
FHA Flute helix angle
50 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
36.9 mm
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9011440140070
Interface codes
J6 / J61
ISO
ZYL21G1100h$06
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0110
LOC-03 DCONMS Diameter
11 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL21G1100h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102115
LS Shank length
53 mm
Name Identifying order number
1144 14.007
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
12.38 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374
TCDCONMS ISO-tolerance class shank diameter
h6
TCL Tap chamfer length
3 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
14 mm
THFT Thread form type
MF
THL Thread cutting part length
7.5 mm
THOD Thread designation
MF14x1.5-6HX
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.06 kg
