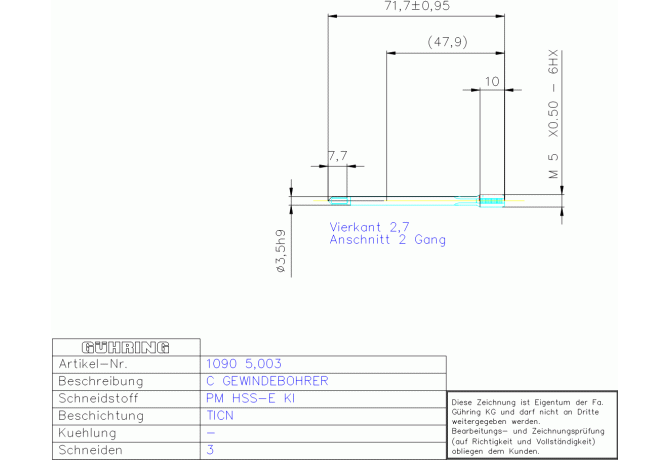

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1090 5.003

1090 5.003

1090 5.003 1090 5.003

1090 5.003

Gühring
Артикул: 9010900050030
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TICN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
HS
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00352105
DRVS Drive size
2.7 mm
FamilyProducts
PM HSSE C-GBO M 5 X0,50 DIN 374 H-C
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9010900050030
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0035
LOC-03 DCONMS Diameter
3.5 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352105
LS Shank length
59.2 mm
Name Identifying order number
1090 5.003
NOF Flute count
3
OAL Overall length
70 mm
PLCD Gate diameter
4.46 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
1 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
5 mm
THFT Thread form type
MF
THL Thread cutting part length
10 mm
THOD Thread designation
MF5x0.5-6HX
TP Thread pitch
0.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.007 kg
