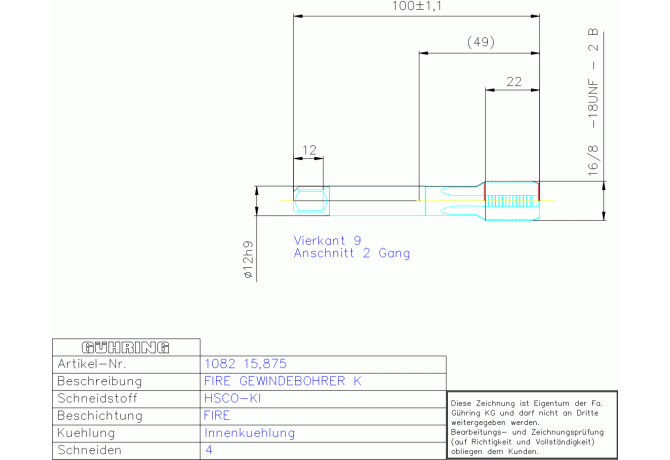

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1082 15.875

1082 15.875

1082 15.875 1082 15.875

1082 15.875

Gühring
Артикул: 9010820158750
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
FIRE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
GG
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01202115
DRVS Drive size
9 mm
FamilyProducts
HSS-E FIRE GBO IK DIN 374 5/8 -18 UNF
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9010820158750
Interface codes
J6 / J61
ISO
ZYL21G1200h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21G1200h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202115
LS Shank length
55.9 mm
Name Identifying order number
1082 15.875
NOF Flute count
4
OAL Overall length
100 mm
PLCD Gate diameter
14.35 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.822 mm
TCTR Thread tolerance class
2 B
TDFR Thread diameter nominal fraction
5/8 in
TDIN Thread diameter nominal inch
0.625 in
THFT Thread form type
UNF
THL Thread cutting part length
22 mm
THOD Thread designation
UNF5/8-18-2 B
TP Thread pitch
1.411 mm
TPI Threads per inch
18 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.08 kg
